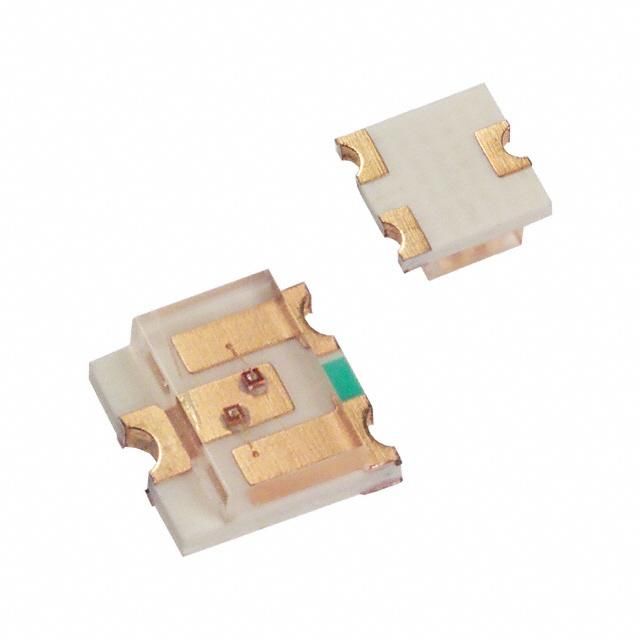

Surface mount, single-color LED emitter featuring a 3mm rectangular, diffused, colorless lens. Delivers ultra super green illumination with a typical luminous intensity of 45mcd at a 20mA forward current. Operating temperature range is -40°C to 85°C, with a wide 140° viewing angle. Packaged in tape and reel, this RoHS compliant component utilizes a SOT-23 package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Lumex SML-LX15SUGC-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Lumex SML-LX15SUGC-TR technical specifications.
| Package/Case | SOT-23 |
| Color | Green |
| Forward Current | 20mA |
| Height | 1mm |
| Illumination Color | Green |
| Input Current | 1A |
| Lead Free | Lead Free |
| Length | 3mm |
| Lens Color | Colorless |
| Lens Style | Rectangular, Diffused, Colorless, Clear |
| Lens Transparency | Clear |
| Luminous Intensity | 45mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Number of Outputs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Angle | 140° |
| Wavelength | 574nm |
| Width | 3mm |
| RoHS | Compliant |
