High-power, multi-color LED emitter for surface mount applications. Features three integrated LEDs (Red, Green, Blue) with a combined power dissipation of 3.5W and a forward current of 350mA. Offers a wide 110° viewing angle and a luminous flux of 8lm. Encased in a 10.6mm x 10mm x 3.3mm SMD/SMT package with a diffused, colorless lens. Operates within a temperature range of -30°C to 85°C and is RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Power3.5W
Quick Jump:
Technical Specifications
Lumex SML-LX1610RGBW/A technical specifications.
General
| Package/Case | SMD/SMT |
| Color | Blue, Green, Red, Yellow |
| Forward Current | 350mA |
| Height | 3.3mm |
| Lead Free | Lead Free |
| Length | 10.6mm |
| Lens Style | Round, Diffused, Colorless |
| Luminous Flux | 8lm |
| Max Current Rating | 350mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Power Dissipation | 3.5W |
| Mount | Surface Mount |
| Number of LEDs | 3 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 3.5W |
| Reach SVHC Compliant | No |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Series | TitanBrite™ |
| Test Temperature | 25°C |
| Viewing Angle | 110° |
| Wavelength | 470nm |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Lumex SML-LX1610RGBW/A Datasheet
Download the complete datasheet for Lumex SML-LX1610RGBW/A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

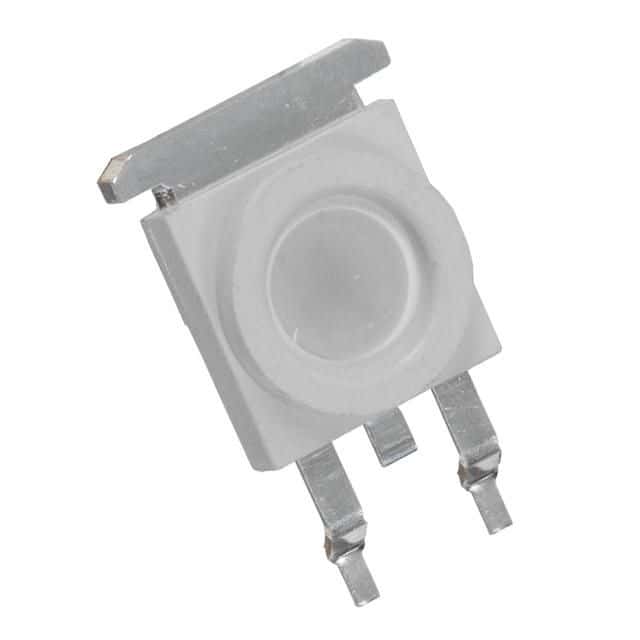

Product Images
