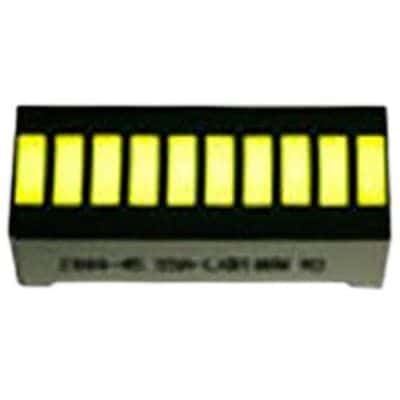

Uni-color LED light bar featuring 10 green segments, emitting light at 565nm. This 20-pin component offers a 160° viewing angle and a diffused, flat lens style. Operating with a forward current of 20mA and a voltage rating of 2.1V, it has a luminous intensity of 8mcd. Designed for through-hole PCB mounting, it operates within a temperature range of -40°C to 85°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Lumex SSA-LXB10GW datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Character Width | 1.74mm |
| Color | Green |
| Current | 25mA |
| Display Type | Segment |
| Forward Current | 20mA |
| Height | 10.16mm |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Length | 25.4mm |
| Lens Color | Green |
| Lens Style | Diffused, Flat |
| Luminous Intensity | 8mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Number of Characters | 10 |
| Number of Contacts | 20 |
| Number of Segments | 10 |
| Package Quantity | 10 |
| Packaging | Bulk |
| Power Dissipation | 105mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Angle | 160° |
| Voltage Rating | 2.1V |
| Width | 25.4mm |
| RoHS | Compliant |
