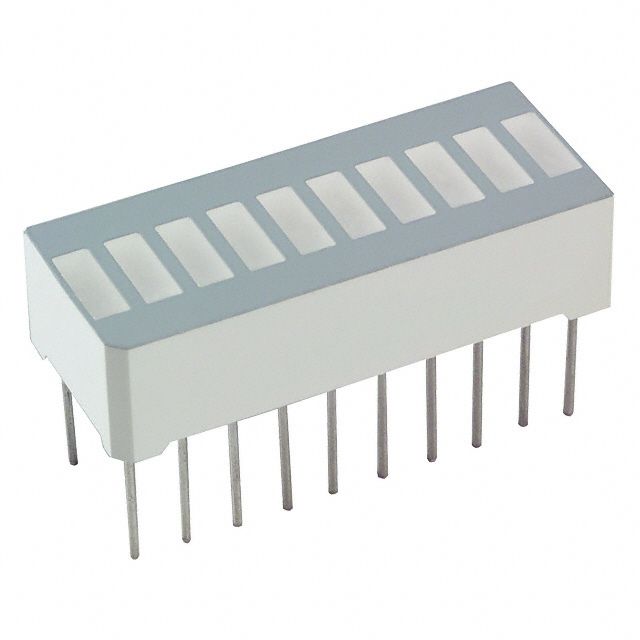

10-segment LED light bar featuring a diffused, tinted, round, flat lens style with a 2mm lens size. This uni-color red LED indication product offers a 160° viewing angle and a luminous intensity of 4mcd. It operates with a forward current of 20mA and a voltage rating of 2V, with a maximum power dissipation of 105mW. Designed for through-hole PCB mounting, this RoHS compliant component has a character width of 1.74mm and a height of 10.16mm, with an operating temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Lumex SSA-LXB10HW-GF/LP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Lumex SSA-LXB10HW-GF/LP technical specifications.
| Character Width | 1.74mm |
| Color | Red |
| Current | 30mA |
| Display Type | Segment |
| Forward Current | 20mA |
| Height | 10.16mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 25.1mm |
| Lens Size | 2mm |
| Lens Style | Diffused, Tinted, Round, Flat |
| Luminous Intensity | 4mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Number of Characters | 10 |
| Number of Contacts | 18 |
| Number of Segments | 10 |
| Operating Supply Voltage | 2V |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power Dissipation | 105mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Angle | 160° |
| Voltage Rating | 2V |
| Width | 25.4mm |
| RoHS | Compliant |
