Green LED emitter, 565nm wavelength, featuring a 3mm diameter and 2.1V forward voltage. This diffused, tinted, round, domed LED offers a 60° viewing angle and 30mcd luminous intensity at a 20mA forward current. Designed for through-hole mounting, it operates within a temperature range of -40°C to 85°C and is RoHS compliant. Packaged in bulk quantities of 1000 units.
Voltage Rating2.1V
MountingThrough Hole
Quick Jump:
Technical Specifications
Lumex SSF-LXH103GD technical specifications.
General
| Color | Green |
| Diameter | 3mm |
| Forward Current | 20mA |
| Height | 7.4mm |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Lens Color | Green |
| Lens Size | 5mm |
| Lens Style | Diffused, Tinted, Round, Domed, Dome, Colored |
| Luminous Intensity | 30mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of LEDs | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Angle | 60° |
| Voltage Rating | 2.1V |
| Wavelength | 565nm |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Lumex SSF-LXH103GD Datasheet
Download the complete datasheet for Lumex SSF-LXH103GD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

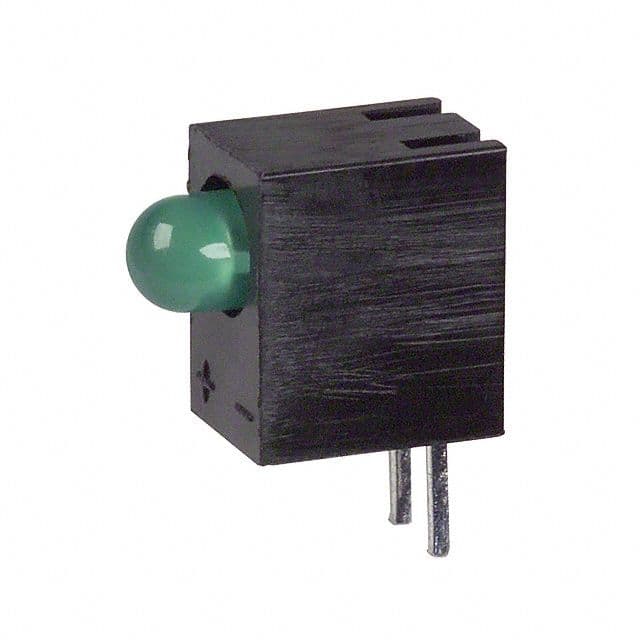

Product Images
