Bi-level, uni-color green LED emitter with a 565nm wavelength. Features a 3mm diffused, tinted, round, domed, colored lens with a 5mm diameter. Operates at a 2.2V forward voltage and 25mA forward current, delivering 40mcd luminous intensity with a 60° viewing angle. Through-hole mount design with 2 contacts and 2 LEDs per unit. Lead-free and RoHS compliant.
Voltage Rating2.2V
MountingThrough Hole
Quick Jump:
Technical Specifications
Lumex SSF-LXH240GGD technical specifications.
General
| Color | Green |
| Diameter | 3mm |
| Forward Current | 25mA |
| Height | 9.65mm |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Lens Color | Green |
| Lens Size | 5mm |
| Lens Style | Diffused, Tinted, Round, Domed, Colored |
| Luminous Intensity | 40mcd |
| Mount | Through Hole |
| Number of Contacts | 2 |
| Number of LEDs | 2 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Angle | 60° |
| Voltage Rating | 2.2V |
| Wavelength | 565nm |
| Width | 4.32mm |
Compliance
| RoHS | Compliant |
Datasheet
Lumex SSF-LXH240GGD Datasheet
Download the complete datasheet for Lumex SSF-LXH240GGD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

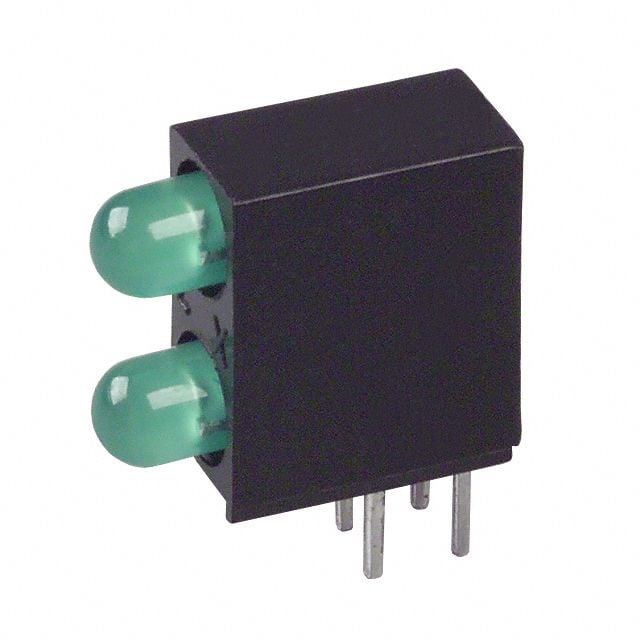

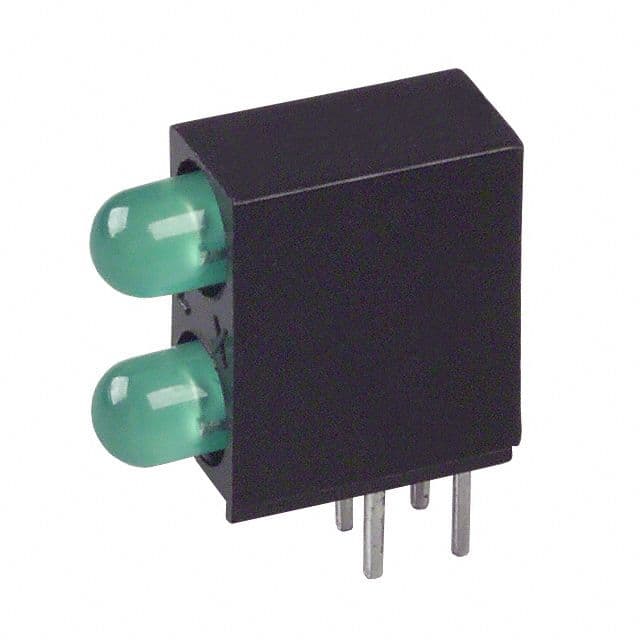

Product Images
