High-intensity, single-color red LED emitter featuring a diffused, round, domed lens. This through-hole component operates at 2V forward voltage and 30mA forward current, delivering a luminous intensity of 40mcd with a 60° viewing angle. The 5mm T-1 3/4 package is lead-free and RoHS compliant, suitable for panel mounting with wire lead terminations. Operating temperature range is -40°C to 85°C.
PackageRadial
Voltage2V
Current30mA
Current Rating30mA
Quick Jump:
Technical Specifications
Lumex SSI-LXH600ID-150 technical specifications.
General
| Package/Case | Radial |
| Color | Red |
| Current | 30mA |
| Current Rating | 30mA |
| Diameter | 5mm |
| Forward Current | 30mA |
| Height | 0.484inch |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Lens Color | Red |
| Lens Size | 5mm |
| Lens Style | Round, Domed, Dome, Diffused, Colored |
| Lens Transparency | Diffused |
| Luminous Intensity | 40mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Panel |
| Number of LEDs | 1 |
| Operating Supply Voltage | 2V |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Wire Leads |
| Viewing Angle | 60° |
| Voltage | 2V |
| DC Rated Voltage | 2.5V |
| Wavelength | 635nm |
Compliance
| RoHS | Compliant |
Datasheet
Lumex SSI-LXH600ID-150 Datasheet
Download the complete datasheet for Lumex SSI-LXH600ID-150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

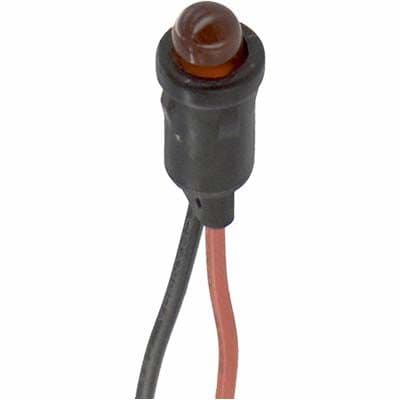

Product Images
