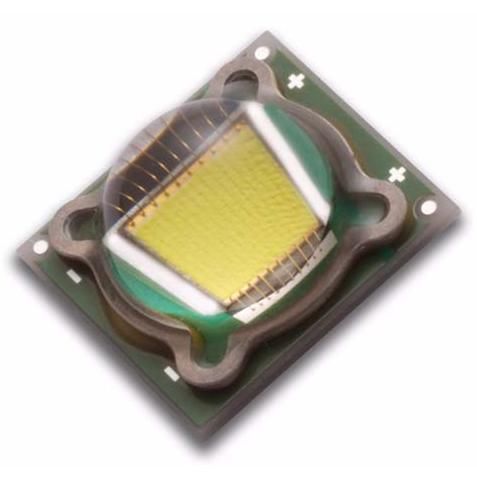

The SST-90-W45S-F11-L2401 is a white LED emitter module with a correlated color temperature of 4500K and a color rendering index of 70. It has a forward current rating of 3.15A and a maximum current rating of 9A. The module is packaged in a tape and reel format with 25 units per package. It has a viewing angle of 100° and a luminous flux of 665lm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Luminus SST-90-W45S-F11-L2401 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Luminus SST-90-W45S-F11-L2401 technical specifications.
| Package/Case | Module |
| Color | White |
| Color Rendering Index (CRI) | 70 |
| Correlated Color Temperature (CCT) | 4500K |
| Forward Current | 3.15A |
| Height | 5.4mm |
| Illumination Color | White |
| Length | 11mm |
| Lens Style | Domed |
| Luminous Flux | 665lm |
| Max Current Rating | 9A |
| Package Quantity | 25 |
| Packaging | Tape and Reel |
| Series | SST-90 |
| Test Temperature | 25°C |
| Viewing Angle | 100° |
| Width | 10mm |
| RoHS | Compliant |
Download the complete datasheet for Luminus SST-90-W45S-F11-L2401 to view detailed technical specifications.
