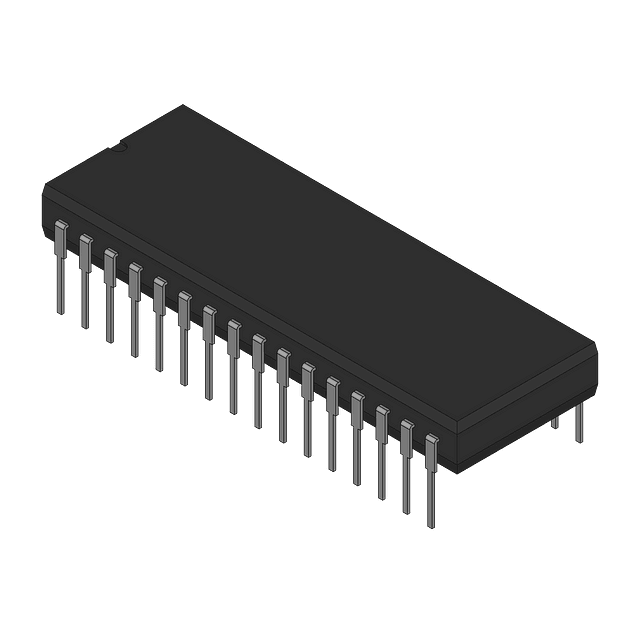

The DS1251W-120 is a 32-pin DIP real time clock timer IC from Maxim. It operates within a commercial temperature range of 0 to 70 degrees Celsius. The device is powered by a nominal supply voltage of 3.3V, with a minimum and maximum voltage of 2.97V and 3.63V, respectively. The IC features an external data bus width of 8 bits and is designed for use in timer and real time clock applications.
Quick Jump:
Technical Specifications
Maxim DS1251W-120 technical specifications.
General
| Max Operating Temperature | 70 |
| Number of Terminals | 32 |
| Min Operating Temperature | 0 |
| Terminal Position | DUAL |
| JEDEC Package Code | R-PDIP-T32 |
| Width | 15.24 |
| Length | 43.053 |
| Pin Count | 32 |
| Temperature Grade | COMMERCIAL |
| Supply Voltage-Nom | 3.3 |
| Supply Voltage-Min | 2.97 |
| Supply Voltage-Max | 3.63 |
| uPs/uCs/Peripheral ICs Type | TIMER, REAL TIME CLOCK |
| External Data Bus Width | 8 |
Compliance
| RoHS | No |
| Eccn Code | EAR99 |
| HTS Code | 8542.39.00.01 |
| REACH | not_compliant |
| Military Spec | False |
Datasheet
Maxim DS1251W-120 Datasheet
Download the complete datasheet for Maxim DS1251W-120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
