PackageSIP
Current Rating10A
MountingThrough Hole
Quick Jump:
Technical Specifications
MCC GBJ1006-BP technical specifications.
General
Package/Case
SIP
Current Rating
10A
Forward Current
10A
Height
20.3mm
Lead Free
Lead Free
Length
30.3mm
Max Forward Surge Current (Ifsm)
170A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
10uA
Max Reverse Leakage Current
10uA
Max Surge Current
170A
Mount
Through Hole
Number of Elements
1
Output Current
10A
Package Quantity
750
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
170A
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
DC Rated Voltage
600V
Width
4.8mm
Compliance
RoHS
Compliant
Datasheet
MCC GBJ1006-BP Datasheet
Download the complete datasheet for MCC GBJ1006-BP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

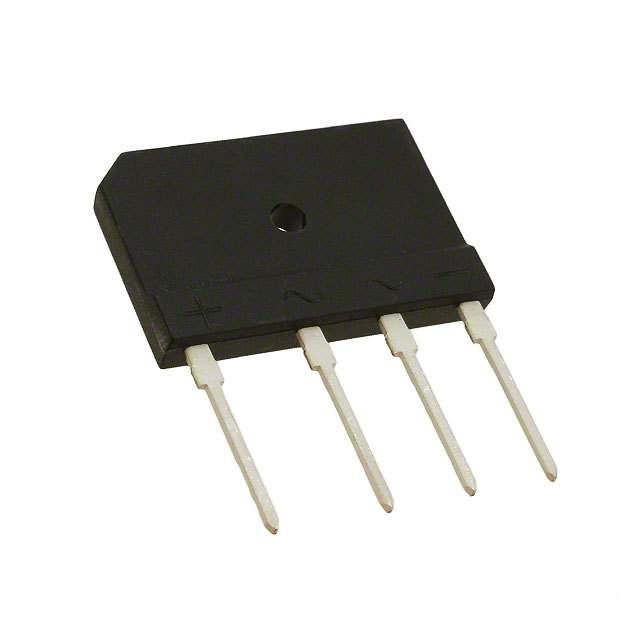

Product Images
