Technical Specifications
MCC GBJ1506-BP technical specifications.
General
Average Rectified Current
15A
Current Rating
15A
Forward Current
15A
Height
20.3mm
Lead Free
Lead Free
Length
30.3mm
Max Forward Surge Current (Ifsm)
240A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
10uA
Max Reverse Leakage Current
10uA
Max Surge Current
240A
Mount
Through Hole
Number of Elements
1
Output Current
15A
Package Quantity
750
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
240A
Radiation Hardening
No
RoHS Compliant
Yes
DC Rated Voltage
600V
Width
4.8mm
Compliance
RoHS
Compliant
Datasheet
MCC GBJ1506-BP Datasheet
Download the complete datasheet for MCC GBJ1506-BP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

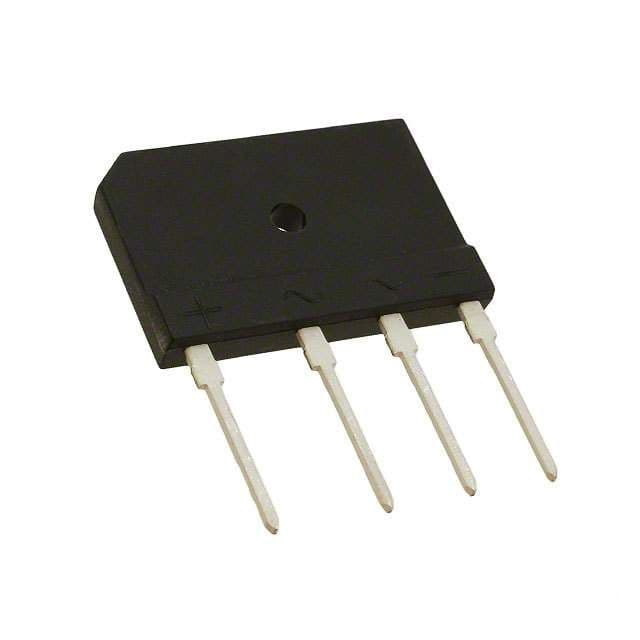

Product Images
