Capacitance60pF
Current Rating15A
MountingThrough Hole
Quick Jump:
Technical Specifications
MCC GBJ1510-BP technical specifications.
General
Capacitance
60pF
Current Rating
15A
Forward Current
15A
Height
20.3mm
Lead Free
Lead Free
Length
30.3mm
Max Forward Surge Current (Ifsm)
240A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Current
10uA
Max Reverse Leakage Current
10uA
Max Surge Current
240A
Mount
Through Hole
Number of Elements
1
Output Current
15A
Package Quantity
750
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
240A
RoHS Compliant
Yes
DC Rated Voltage
1kV
Width
4.8mm
Compliance
RoHS
Compliant
Datasheet
MCC GBJ1510-BP Datasheet
Download the complete datasheet for MCC GBJ1510-BP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

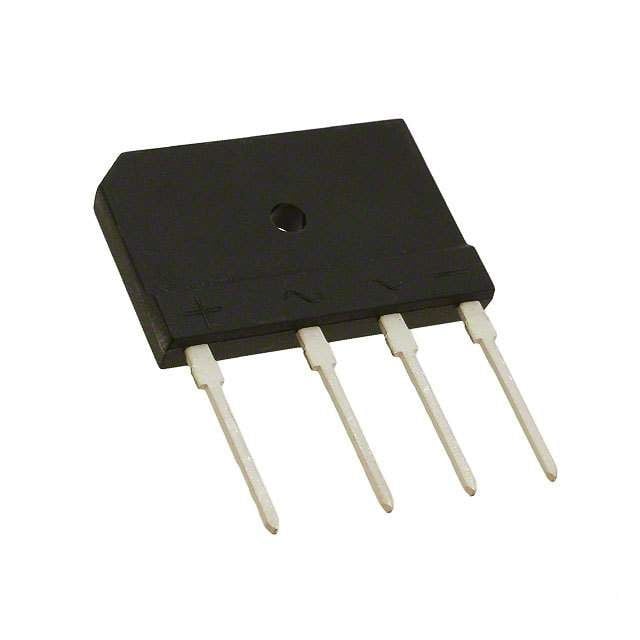

Product Images
