Frequency40MHz
PackagePLCC
Voltage5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT80C32X2-SLSUM technical specifications.
General
Access Time
40us
Package/Case
PLCC
Core Architecture
80C51
Data Bus Width
8b
Frequency
40MHz
Interface
UART, USART
Lead Free
Lead Free
Max Frequency
60MHz
Max Operating Temperature
85°C
Memory Type
ROMless,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of I/Os
32
Number of Programmable I/O
32
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
972
Packaging
Rail/Tube
Peripherals
POR
RAM Size
256B
RoHS Compliant
Yes
Series
80C
Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Microchip AT80C32X2-SLSUM Datasheet
Download the complete datasheet for Microchip AT80C32X2-SLSUM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

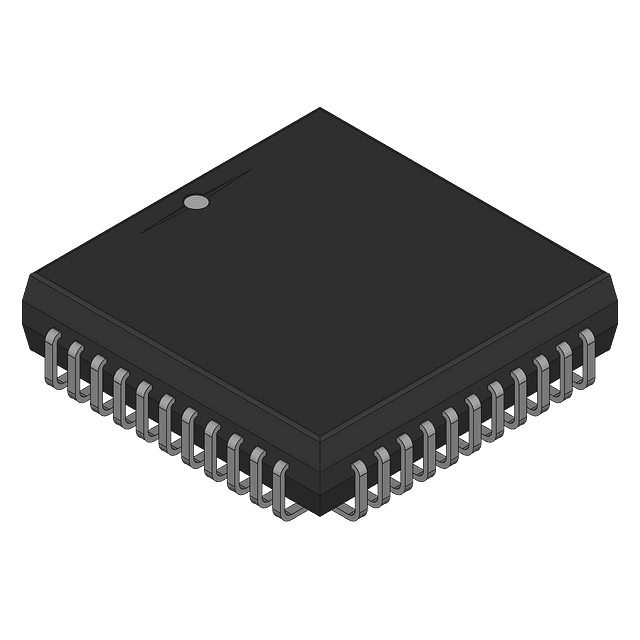

Product Images
