Frequency125MHz
PackageJ
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATF1504AS-10JC84 technical specifications.
General
Package/Case
J
Lead Free
Contains Lead
Max Frequency
125MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.25V
Memory Type
EEPROM,
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of Gates
1500
Number of I/Os
64
Number of Logic Blocks (LABs)
4
Number of Macro Cells
64
Number of Macrocells
64
Number of Programmable I/O
64
Operating Supply Voltage
5V
Package Quantity
15
Packaging
Rail/Tube
Propagation Delay
10ns
Radiation Hardening
No
RoHS Compliant
No
Series
ATF15xx
Speed Grade
10
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip ATF1504AS-10JC84 Datasheet
Download the complete datasheet for Microchip ATF1504AS-10JC84 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

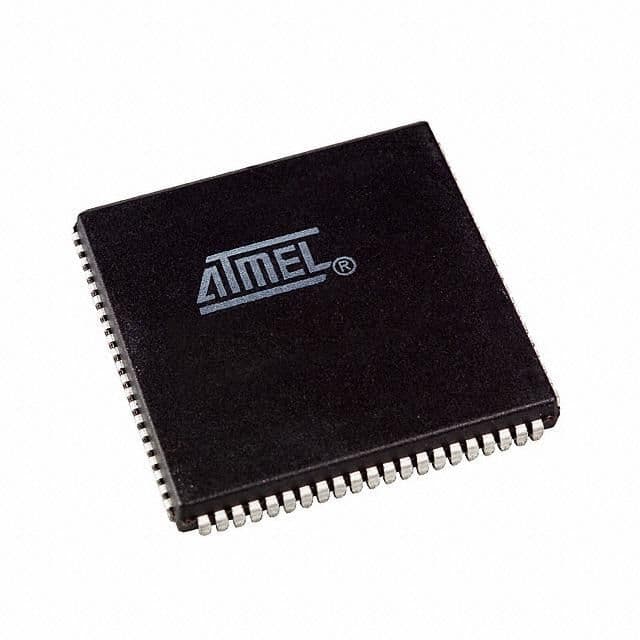

Product Images
