Frequency16MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA169P-16MCU technical specifications.
General
Package/Case
VQFN
Core Architecture
AVR
Data Bus Width
8b
Interface
SPI, USART, UART
Max Frequency
16MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
54
Number of Programmable I/O
54
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
260
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
RAM Size
1KB
RoHS Compliant
Yes
Series
AVR® ATmega
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA169P-16MCU Datasheet
Download the complete datasheet for Microchip ATMEGA169P-16MCU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

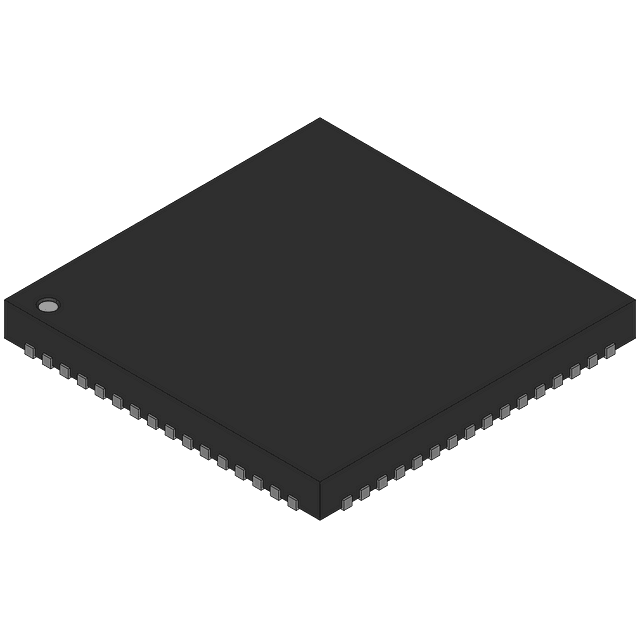

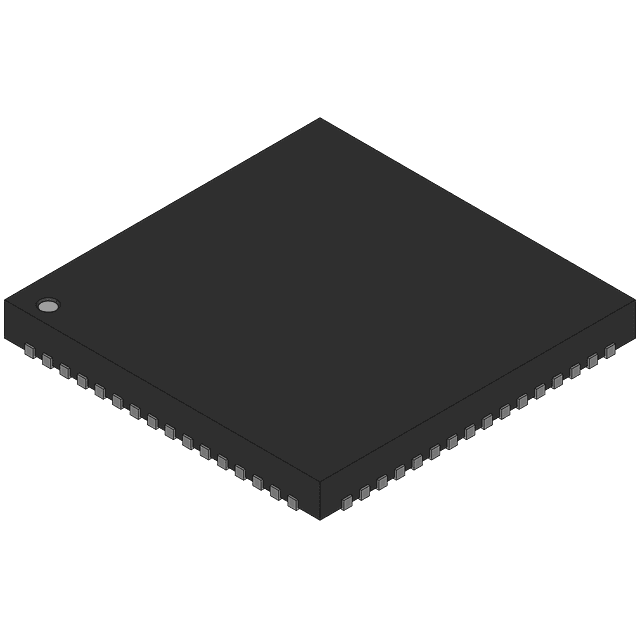

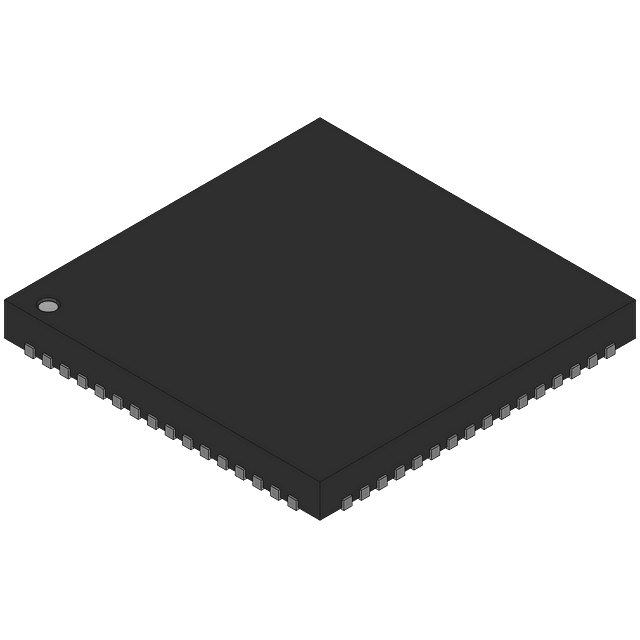

Product Images
