Frequency8MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA169PV-8MCH technical specifications.
General
Package/Case
QFN EP
Contact Plating
Tin, Matte
Core Architecture
AVR
Data Bus Width
8b
Frequency
8MHz
Interface
SPI, UART, USART
Max Frequency
8MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of I/Os
54
Number of Programmable I/O
54
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
360
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
RAM Size
1KB
RoHS Compliant
Yes
Series
AVR® ATmega
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip ATMEGA169PV-8MCH Datasheet
Download the complete datasheet for Microchip ATMEGA169PV-8MCH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

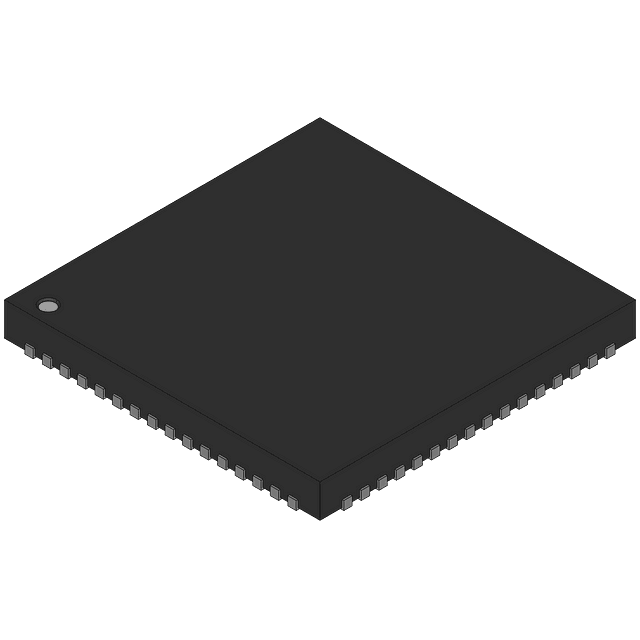

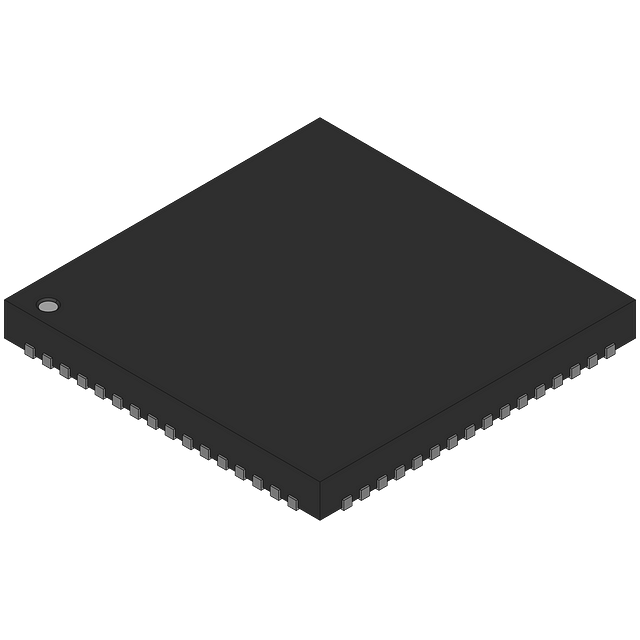

Product Images
