Technical Specifications
Microchip ATSAM3S1BA-MU technical specifications.
General
| Package/Case | QFN |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 64MHz |
| Interface | SPI, UART, 2-Wire, I2C, USB, MMC, USART, I2S |
| Max Frequency | 64MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.62V |
| Mount | Surface Mount |
| Number of I/Os | 47 |
| Number of Programmable I/O | 47 |
| Number of Timers/Counters | 3 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package Quantity | 260 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 16KB |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SAM3S |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATSAM3S1BA-MU Datasheet
Download the complete datasheet for Microchip ATSAM3S1BA-MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

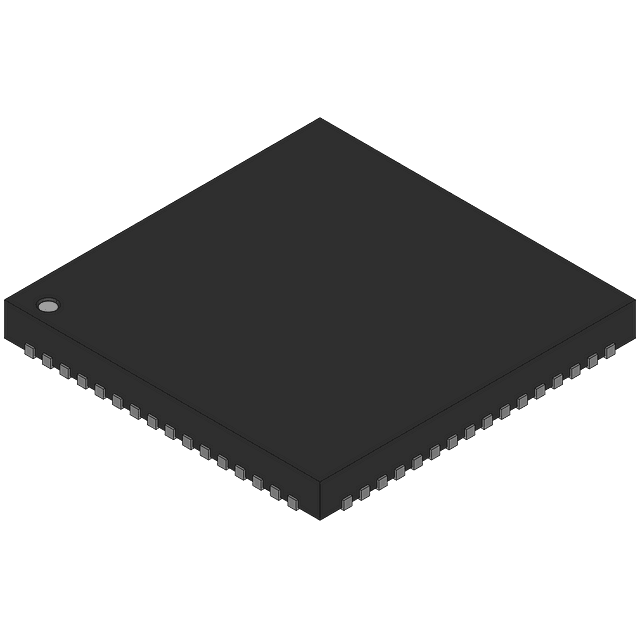

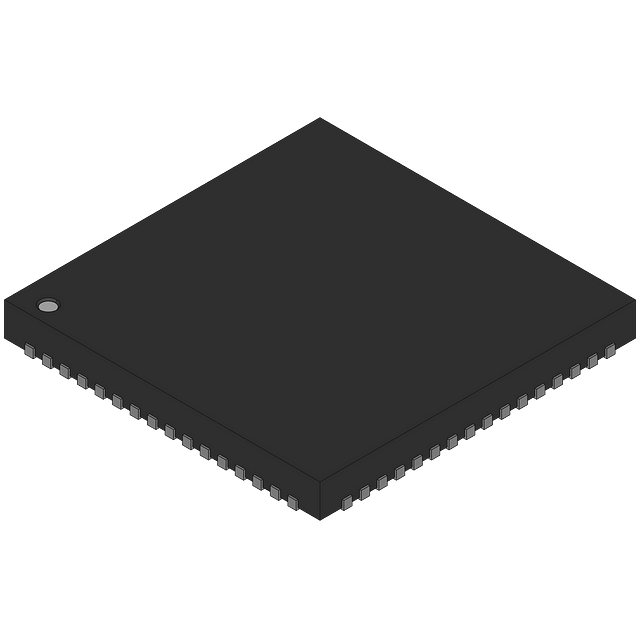

Product Images
