The ATTINY861A-XUR is an 8KB FLASH AVR microcontroller with a 20MHz internal oscillator. It operates over a temperature range of -40°C to 85°C and can be supplied with a voltage between 1.8V and 5.5V. The device features 16 I/Os and includes peripherals such as brown-out detect/reset, power-on reset, pulse-width modulation, and a temperature sensor. It is packaged in a surface mount package and is available on cut tape.
Frequency20MHz
PackageX
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATTINY861A-XUR technical specifications.
General
| Package/Case | X |
| Core Architecture | AVR |
| Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of I/Os | 16 |
| Oscillator Type | Internal |
| Packaging | Cut Tape |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor |
| Series | AVR® ATtiny |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATTINY861A-XUR Datasheet
Download the complete datasheet for Microchip ATTINY861A-XUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

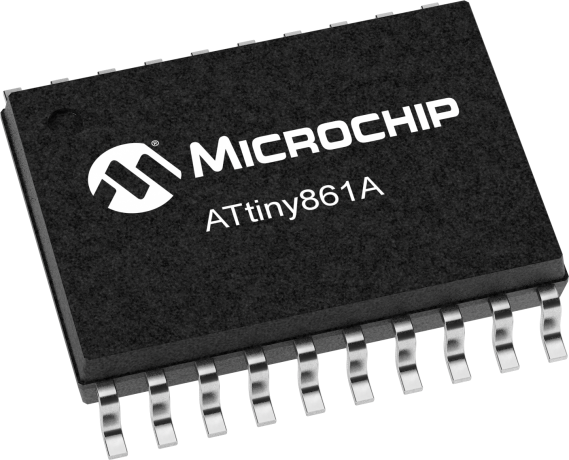

Product Images
