The AVR ATtiny microcontroller features a 12MHz core clock speed and operates within a temperature range of -40°C to 85°C. It is available in a SOT-23-6 package, which is surface mountable. The device has 1KB of FLASH memory and supports various peripherals, including a power-on reset, pulse-width modulation, and a watchdog timer. The ATtiny is RoHS compliant and suitable for use in a variety of applications.
Frequency12MHz
PackageSOT-23-6
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATTINY9-MAHR technical specifications.
General
| Package/Case | SOT-23-6 |
| Core Architecture | AVR |
| Frequency | 12MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 1KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of I/Os | 4 |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peripherals | POR, PWM, WDT |
| RoHS Compliant | Yes |
| Series | AVR® ATtiny |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATTINY9-MAHR Datasheet
Download the complete datasheet for Microchip ATTINY9-MAHR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

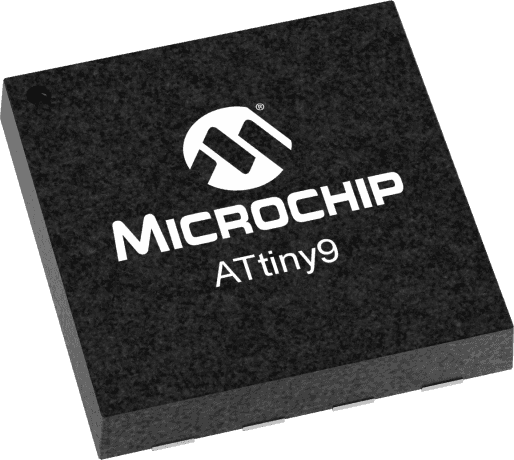

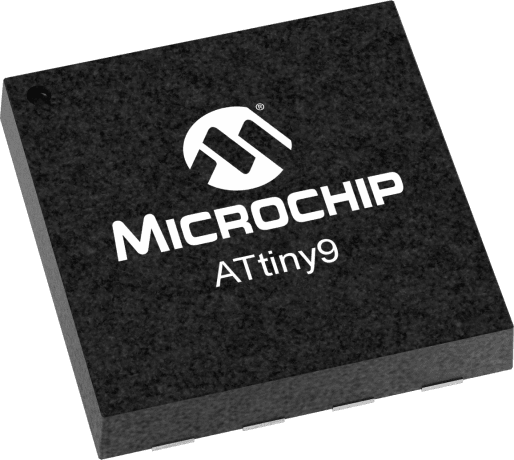

Product Images
