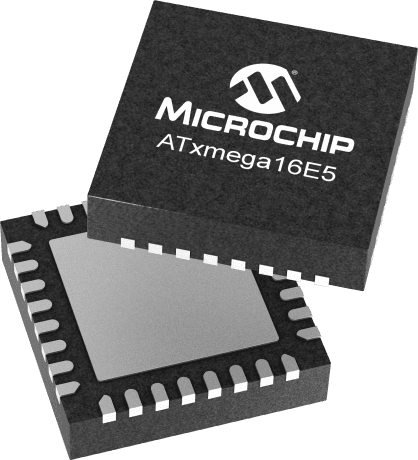

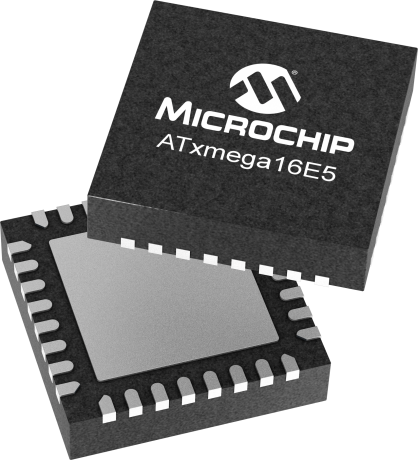

The ATXMEGA16E5-M4U is an 8-bit AVR microcontroller from Microchip. It features a 32MHz clock speed and operates within a temperature range of -40°C to 85°C. The device has 16KB of FLASH memory and 2KB of RAM. It supports various interfaces, including SPI, USART, I2C, IrDA, and UART. The microcontroller is packaged in a 0603 case and is lead-free. It is RoHS compliant and has a maximum power dissipation of 250mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ATXMEGA16E5-M4U datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 0603 |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Features | Moisture Resistant |
| Frequency | 32MHz |
| Interface | SPI, USART, 2-Wire, I2C, IrDA, UART |
| Lead Free | Lead Free |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 250mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.6V |
| Number of ADC Channels | 16 |
| Number of I/Os | 26 |
| Number of Terminations | 2 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Package Quantity | 1470 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| RAM Size | 2KB |
| Reach SVHC Compliant | No |
| Resistance | 20mR |
| RoHS Compliant | Yes |
| Series | RU |
| Tolerance | 5% |
| Watchdog Timer | Yes |
| RoHS | Compliant |
