3-port Ethernet switch with 100Mbps data rate, featuring three integrated transceivers. This surface mount component is housed in a 64-pin LQFP package measuring 10mm x 10mm. It operates within a temperature range of -40°C to 85°C and supports a maximum supply voltage of 3.3V. The device is RoHS compliant and supplied in tray packaging.
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8463MLI technical specifications.
General
Package/Case
LQFP
Data Rate
100Mbps
Lead Free
Lead Free
Length
10mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.3V
Mount
Surface Mount
Number of Functions
3
Number of Ports
3
Number of Transceivers
3
Package Quantity
160
Packaging
Tray
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
EtherSynch™
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip KSZ8463MLI Datasheet
Download the complete datasheet for Microchip KSZ8463MLI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

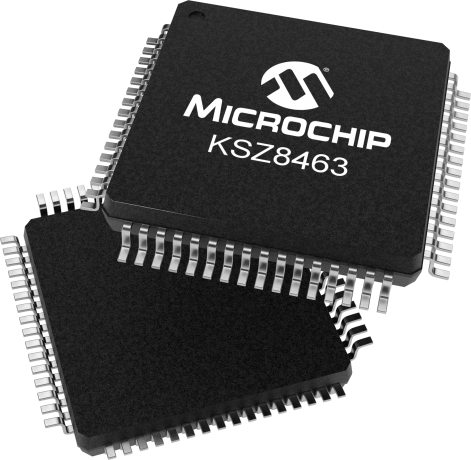

Product Images
