Three-port 100Mbps Ethernet switch, surface mountable in a 48-pin LQFP package. Features I2C and SPI interfaces, operating from a 1.71V to 3.465V supply range with a nominal 3.3V. Includes two transceivers and supports a maximum operating temperature of 70°C. This RoHS compliant component is supplied in a tray of 250 units.
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8863MLL technical specifications.
General
| Package/Case | LQFP |
| Data Rate | 100Mbps |
| Height | 1.4mm |
| Interface | I2C, SPI |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 112mA |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of Functions | 3 |
| Number of Ports | 3 |
| Number of Transceivers | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 250 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Voltage-Nom | 3.3V |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip KSZ8863MLL Datasheet
Download the complete datasheet for Microchip KSZ8863MLL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

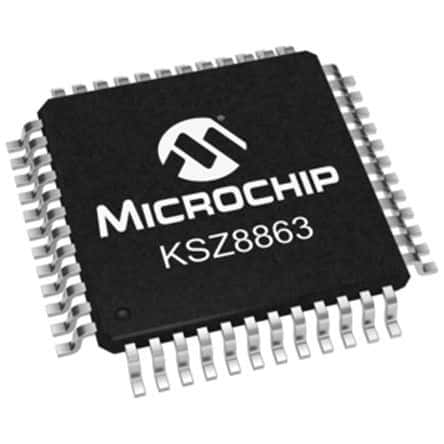

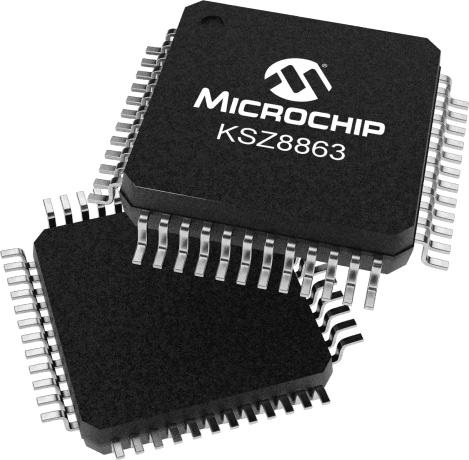

Product Images
