Three-port 100Mbps Ethernet switch, surface mountable in a 48-pin LQFP package. Features I2C and SPI interfaces, operating from a 1.71V to 3.465V supply with a nominal 3.3V. Offers a maximum operating temperature of 85°C and a minimum of -40°C, with a maximum supply current of 112mA. This RoHS compliant component is supplied in trays of 250 units.
PackageLQFP
Current85mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8863MLLI technical specifications.
General
| Package/Case | LQFP |
| Data Rate | 100Mbps |
| Height | 1.3mm |
| Interface | I2C, SPI |
| Lead Free | Lead Free |
| Length | 7.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 112mA |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of Functions | 3 |
| Number of Ports | 3 |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 250 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 85mA |
| Supply Voltage-Nom | 3.3V |
| Width | 7.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip KSZ8863MLLI Datasheet
Download the complete datasheet for Microchip KSZ8863MLLI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

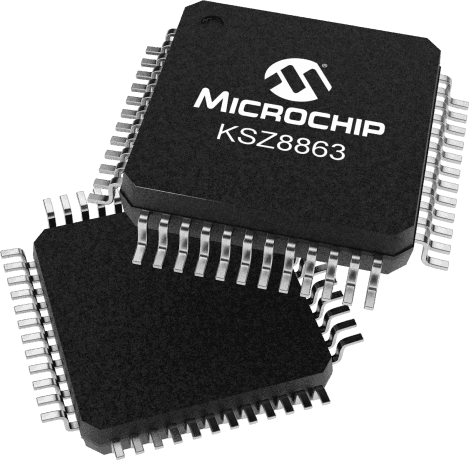

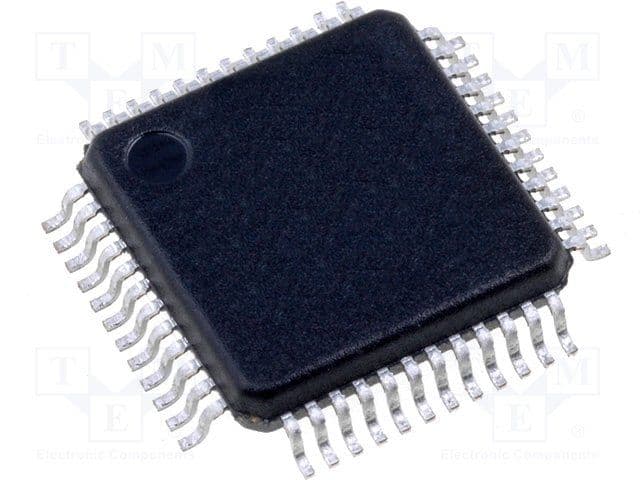

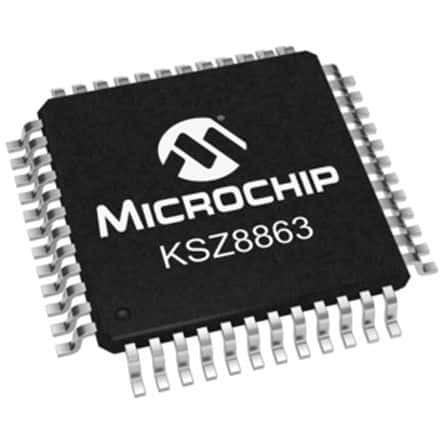

Product Images
