Three-port 100Mbps Ethernet switch featuring I2C and SPI interfaces. This LQFP package component operates with a 3.3V supply voltage, drawing a maximum of 112mA. It supports surface mounting and has a temperature range of 0°C to 70°C. The device includes two transceivers and is RoHS compliant.
PackageLQFP
Current85mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8863RLL technical specifications.
General
Package/Case
LQFP
Data Rate
100Mbps
Height
1.4mm
Interface
I2C, SPI
Lead Free
Lead Free
Length
7mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
112mA
Max Supply Voltage
3.465V
Min Supply Voltage
1.71V
Mount
Surface Mount
Number of Functions
3
Number of Ports
3
Number of Transceivers
2
Operating Supply Voltage
3.3V
Package Quantity
250
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
85mA
Supply Voltage-Nom
3.3V
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Microchip KSZ8863RLL Datasheet
Download the complete datasheet for Microchip KSZ8863RLL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

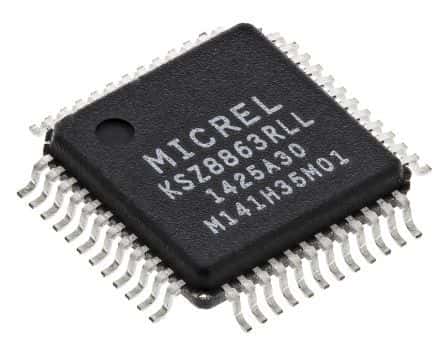

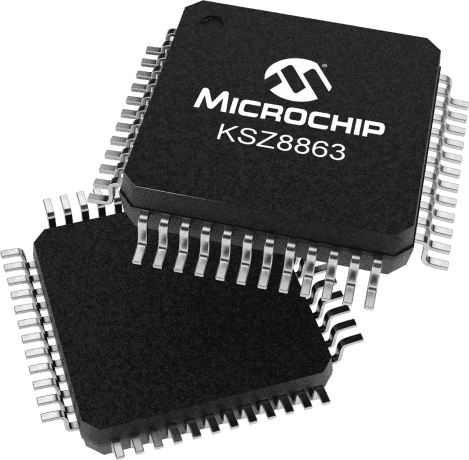

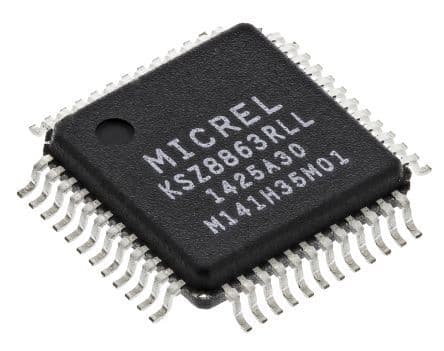

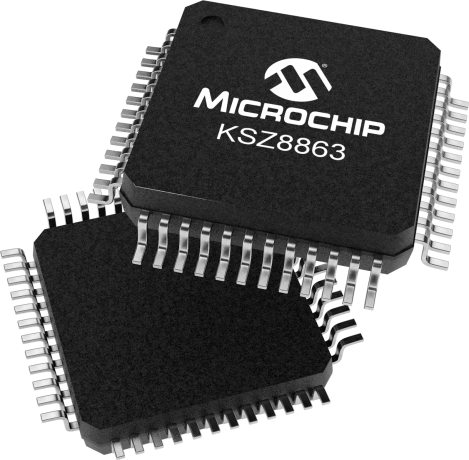

Product Images
