3-port 100Mbps Ethernet switch, ideal for embedded networking applications. Features 3 integrated transceivers and supports I2C and SPI interfaces. Operates from a 1.71V to 3.465V supply voltage with a nominal 3.3V, consuming up to 114mA. Packaged in a 48-pin LQFP (7.1mm x 7.1mm x 1.45mm) for surface mounting. RoHS compliant with a wide operating temperature range of -40°C to 85°C.
PackageLQFP
Current85mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8863RLLI technical specifications.
General
Package/Case
LQFP
Data Rate
100Mbps
Height
1.45mm
Interface
I2C, SPI
Lead Free
Lead Free
Length
7.1mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
114mA
Max Supply Voltage
3.465V
Min Supply Voltage
1.71V
Mount
Surface Mount
Number of Channels
3
Number of Functions
3
Number of Ports
3
Number of Transceivers
3
Operating Supply Voltage
3.3V
Package Quantity
250
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
85mA
Supply Voltage-Nom
3.3V
Width
7.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip KSZ8863RLLI Datasheet
Download the complete datasheet for Microchip KSZ8863RLLI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

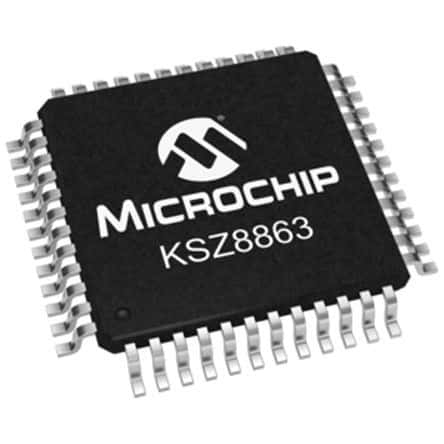

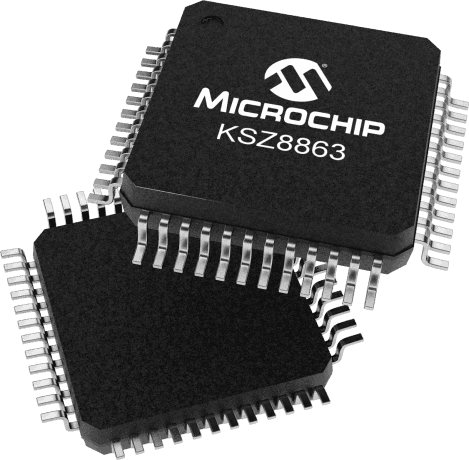

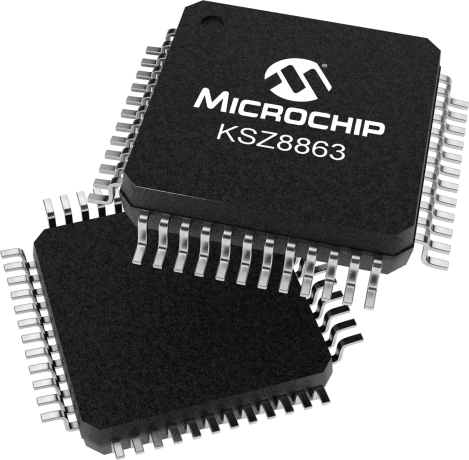

Product Images
