Three-port Ethernet switch operating at 100Mbps. Features I2C and SPI interfaces, supporting two transceivers. Surface mountable in a 128-pin PQFP package (20mm x 14mm x 2.72mm). Operates within a 3.1V to 3.5V supply voltage range, with a maximum supply current of 120mA. Suitable for operation between 0°C and 70°C. RoHS compliant.
PackagePQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8893MQL technical specifications.
General
Package/Case
PQFP
Data Rate
100Mbps
Height
2.72mm
Interface
I2C, SPI
Lead Free
Lead Free
Length
20mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
120mA
Max Supply Voltage
3.5V
Min Supply Voltage
3.1V
Mount
Surface Mount
Number of Functions
3
Number of Ports
3
Number of Transceivers
2
Operating Supply Current
120mA
Operating Supply Voltage
3.3V
Package Quantity
66
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Voltage-Nom
3.5V
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Microchip KSZ8893MQL Datasheet
Download the complete datasheet for Microchip KSZ8893MQL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

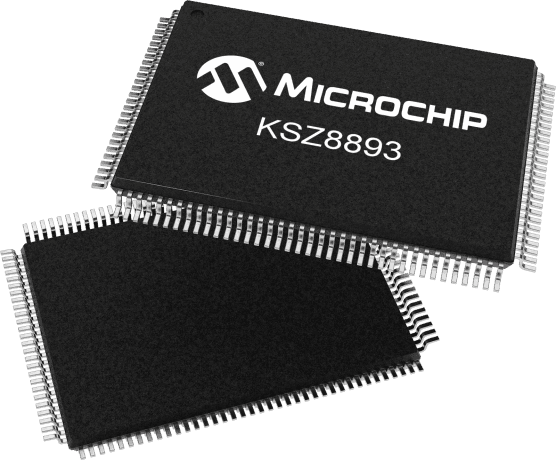

Product Images
