3-port 100Mbps Ethernet switch, surface mountable in a 128-pin PQFP package. Features 2 transceivers and operates at a 3.3V supply voltage with a maximum supply current of 92mA. Offers a maximum power dissipation of 800mW, with an operating temperature range of 0°C to 70°C. This RoHS compliant component is supplied in a tray with 66 units.
PackagePQFP
Current92mA
MountingSurface Mount
Power800mW
Quick Jump:
Technical Specifications
Microchip KSZ8993M technical specifications.
General
| Package/Case | PQFP |
| Data Rate | 100Mbps |
| Height | 2.72mm |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 800mW |
| Max Supply Current | 92mA |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Functions | 3 |
| Number of Ports | 3 |
| Number of Transceivers | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 66 |
| Packaging | Tray |
| Power Dissipation | 800mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 92mA |
| Supply Voltage-Nom | 3.3V |
| Width | 14mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip KSZ8993M Datasheet
Download the complete datasheet for Microchip KSZ8993M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

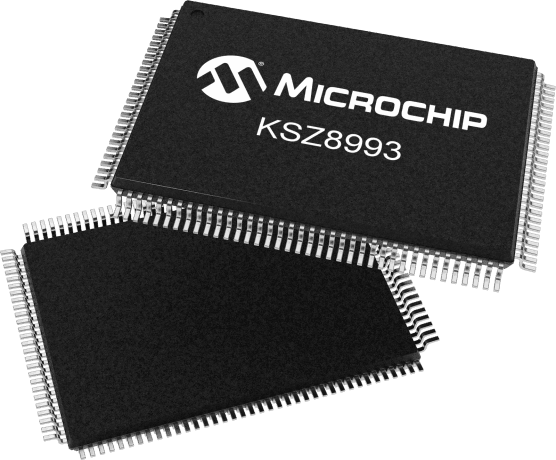

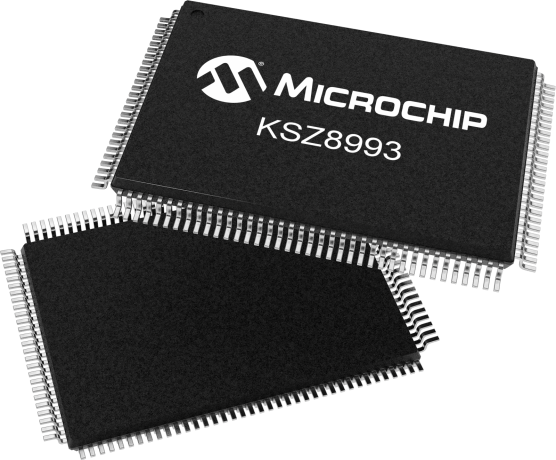

Product Images
