Three-port 100Mbps Ethernet switch featuring 2 transceivers and a 128-pin PQFP package for surface mounting. Operates with a 3.3V supply voltage, drawing a maximum of 92mA, and offers a maximum power dissipation of 800mW. This component supports a temperature range of -40°C to 85°C and is RoHS compliant.
PackagePQFP
Current92mA
MountingSurface Mount
Power800mW
Quick Jump:
Technical Specifications
Microchip KSZ8993MI technical specifications.
General
| Package/Case | PQFP |
| Data Rate | 100Mbps |
| Height | 2.72mm |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 800mW |
| Max Supply Current | 92mA |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Functions | 3 |
| Number of Ports | 3 |
| Number of Transceivers | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 66 |
| Packaging | Tray |
| Power Dissipation | 800mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 92mA |
| Supply Voltage-Nom | 3.3V |
| Width | 14mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip KSZ8993MI Datasheet
Download the complete datasheet for Microchip KSZ8993MI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

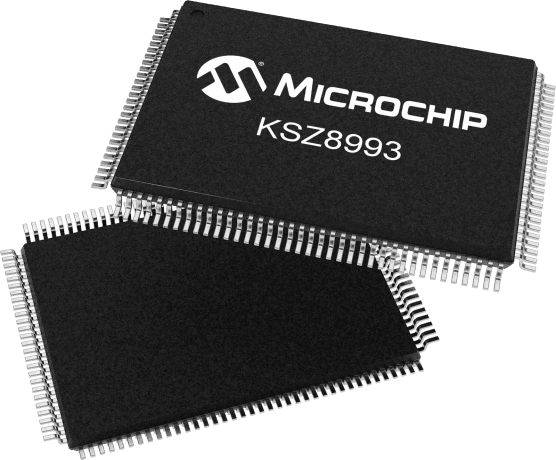

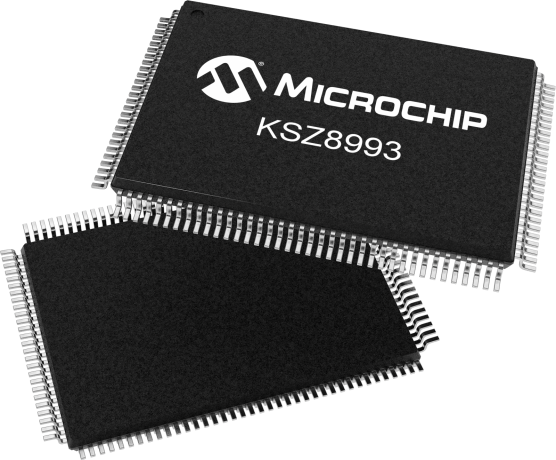

Product Images
