Eight-port 100Mbps Ethernet switch, surface mountable in a 128-pin PQFP package measuring 20mm x 14mm x 2.72mm. Features eight integrated transceivers and operates within a 2V to 2.3V supply voltage range, with a maximum supply current of 900mA. This RoHS compliant component offers a temperature range of 0°C to 70°C.
PackagePQFP
Current900mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8997 technical specifications.
General
| Package/Case | PQFP |
| Data Rate | 100Mbps |
| Height | 2.72mm |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 900mA |
| Max Supply Voltage | 2.3V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Functions | 8 |
| Number of Ports | 8 |
| Number of Transceivers | 8 |
| Package Quantity | 66 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 900mA |
| Supply Voltage-Nom | 3.6V |
| Width | 14mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip KSZ8997 Datasheet
Download the complete datasheet for Microchip KSZ8997 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

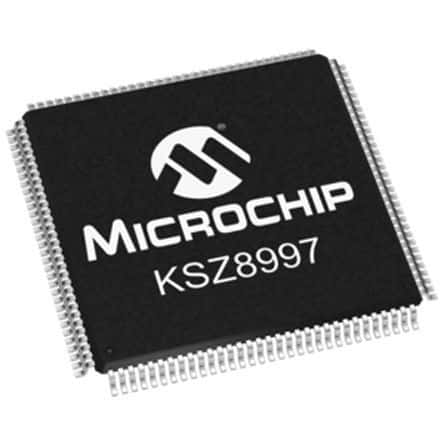

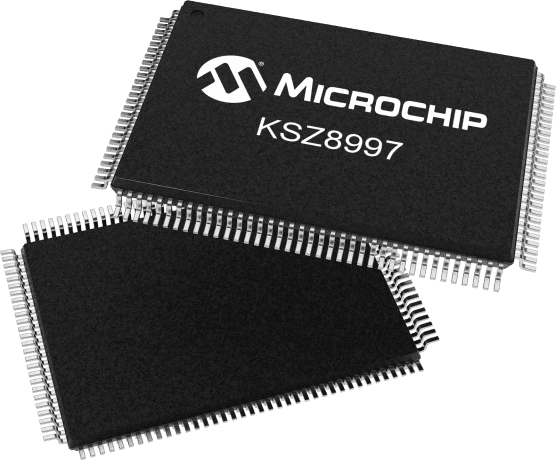

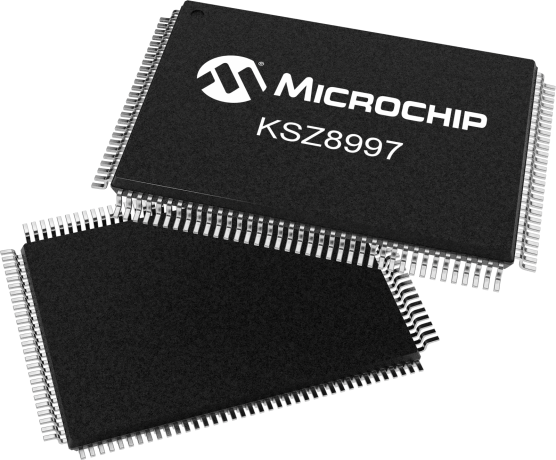

Product Images
