Automotive-grade supervisory circuit with a 2.7V reset threshold, featuring active-low reset output. This surface-mount integrated circuit operates from 1V to 5.5V with a maximum supply current of 60uA. It monitors a single voltage, offering undervoltage detection at 2.55V and overvoltage detection at 2.7V, with a 150ms reset timeout. Packaged in a 3-pin SOT-23, this lead-free component is supplied on tape and reel.
PackageSOT-23
Current60uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip MCP120T-270I/TT technical specifications.
General
| Package/Case | SOT-23 |
| Height | 1.02mm |
| Lead Free | Lead Free |
| Length | 3.04mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 2.7V |
| Min Reset Threshold Voltage | 2.55V |
| Max Supply Current | 60uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 60uA |
| Overvoltage Threshold | 2.7V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 45uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 150ms |
| RoHS Compliant | Yes |
| Supply Current | 60uA |
| Termination | SMD/SMT |
| Threshold Voltage | 2.7V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.55V |
| Watchdog Timer | No |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP120T-270I/TT Datasheet
Download the complete datasheet for Microchip MCP120T-270I/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

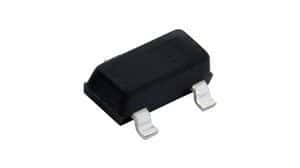

Product Images
