Microchip
PIC16C55A/JW
8-BIT, OTPROM, 20 MHz, RISC MICROCONTROLLER, CDIP28, 0.600 INCH, WINDOWED, CERAMIC, MO-103, DIP-28
Frequency40MHz
Quick Jump:
Technical Specifications
Microchip PIC16C55A/JW technical specifications.
General
Core Architecture
PIC
Data Bus Width
8b
Max Frequency
40MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
512B
Memory Type
EPROM,
Min Supply Voltage
2.5V
Number of Programmable I/O
20
Number of Timers/Counters
1
Oscillator Type
External
Package Quantity
15
Packaging
Rail/Tube
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
24B
RoHS Compliant
Yes
Series
PIC® 16C
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16C55A/JW Datasheet
Download the complete datasheet for Microchip PIC16C55A/JW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

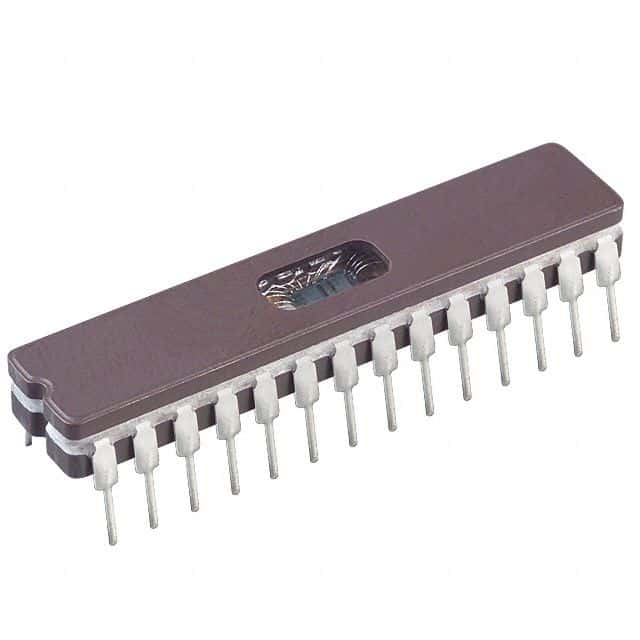

Product Images
