8-bit RISC microcontroller featuring 4MHz operation and 7KB FLASH memory. This PDIP-packaged MCU offers 33 programmable I/O pins, 8 analog-to-digital converter channels, and multiple communication interfaces including USART, I2C, and SPI. It includes 3 timers/counters, 2 PWM channels, and a watchdog timer, operating from a 4V to 5.5V supply.
Frequency4MHz
PackagePDIP
Current1.6mA
Quick Jump:
Technical Specifications
Microchip PIC16F874-04/P technical specifications.
General
Access Time
4us
Address Bus Width
8b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
4MHz
Height
4.06mm
Interface
USART, I2C, SPI, UART, SSP
Lead Free
Lead Free
Length
52.45mm
Max Frequency
4MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
7KB
Memory Type
FLASH
Min Supply Voltage
4V
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
33
Number of I2C Channels
1
Number of Programmable I/O
33
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
External
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
192B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 16F
Supply Current
1.6mA
Watchdog Timer
Yes
Width
14.22mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16F874-04/P Datasheet
Download the complete datasheet for Microchip PIC16F874-04/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

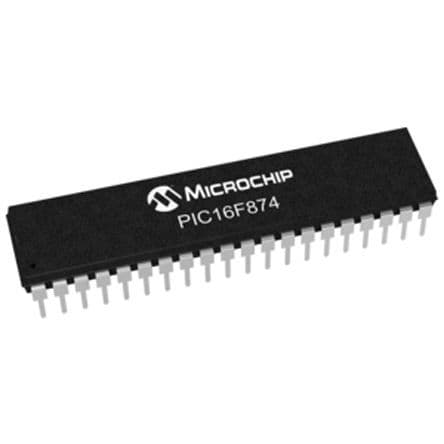

Product Images
