8-bit RISC microcontroller featuring 20MHz operation and 1.75KB FLASH memory. This surface mount device offers 16 programmable I/O pins, 3 timers/counters, and includes PWM and watchdog timer peripherals. Operating from a 2V to 5.5V supply, it supports USART, SCI, and UART interfaces with an access time of 20µs. Packaged in a lead-free, RoHS compliant SOIC-18 plastic body, it operates within a temperature range of -40°C to 85°C.
Frequency20MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC16LF627AT-I/SO technical specifications.
General
Access Time
20us
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Interface
USART, SCI, UART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
1.75KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of Programmable I/O
16
Number of Timers/Counters
3
Package Quantity
1100
Packaging
Tape and Reel
Peripherals
PWM
Radiation Hardening
No
RAM Size
224B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC16LF627AT-I/SO Datasheet
Download the complete datasheet for Microchip PIC16LF627AT-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

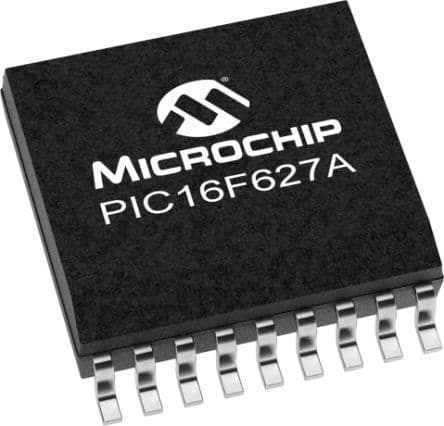

Product Images
