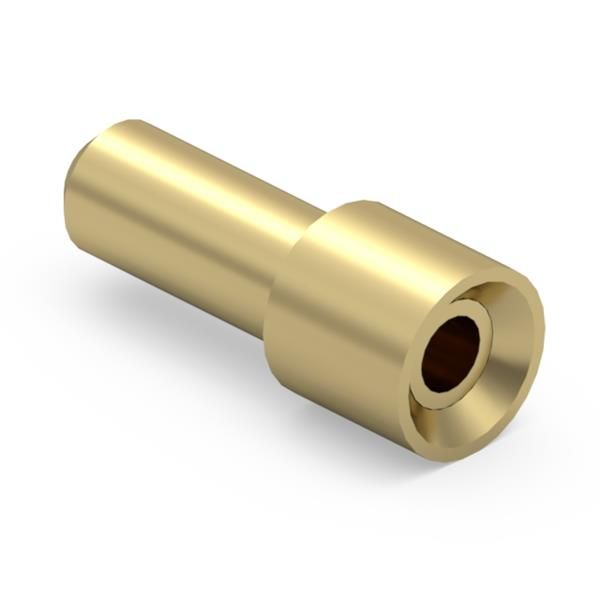

Female signal and power socket contact with gold-plated beryllium copper alloy construction. Features a 3A current rating, straight orientation, and solder termination for through-hole mounting. Operating temperature range spans -55°C to 125°C. This component is RoHS compliant and supplied in bulk packaging.
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Mill-Max 0569-0-15-15-21-27-10-0 technical specifications.
General
Contact Material
Copper, BERYLLIUM COPPER ALLOY
Contact Plating
Gold
Contact Type
N/A
Current Rating
3A
Depth
1.4mm
Flange Diameter
0.055inch
Gender
Female
Height
1.39mm
Inside Diameter
559um
Lead Free
Contains Lead
Length
0.14inch
Max Current Rating
3A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Orientation
Straight
Package Quantity
500
Packaging
Bulk
Pin Hole Diameter
0.031inch
Radiation Hardening
No
RoHS Compliant
Yes
Series
569
Shielding
Unshielded
Socket Depth
0.123inch
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Mill-Max 0569-0-15-15-21-27-10-0 Datasheet
Download the complete datasheet for Mill-Max 0569-0-15-15-21-27-10-0 to view detailed technical specifications.
