123-13-314-41-001000

Datasheet

14 Pos Gold DIP Socket, 2.54mm Pitch, 3A, 1kV

Mill-Max

123-13-314-41-001000

Name: 123-13-314-41-001000 Mill-Max
Brand: Mill-Max
SKU: 123-13-314-41-001000

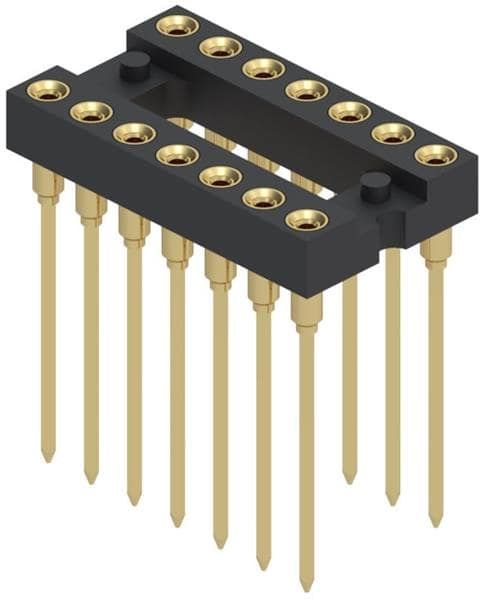

14 Pos Gold DIP Socket, 2.54mm Pitch, 3A, 1kV

14-position, 2-row DIP socket with straight orientation and through-hole/surface mount capability. Features gold-plated copper contacts with a Type D contact type, rated for 3A current and 1kV voltage. Operates within a -55°C to 125°C temperature range, with PBT/Polyester/Polybutylene body material and UL94 V-0 flammability rating. Termination via wire wrap, with a 2.54mm pitch and 7.62mm row spacing.

PackageDIP

Voltage Rating1kV

Current Rating3A

MountingThrough Hole, Surface Mount

Quick Jump:

Technical Specifications

Mill-Max 123-13-314-41-001000 technical specifications.

General

Body Length	0.7inch
Body Material	PBT, Polyester, Polybutylene
Package/Case	DIP
Contact Finish - Mating	GOLD
Contact Material	Copper
Contact Plating	Gold
Contact Type	Type D
Current Rating	3A
Depth	10.16mm
Flammability Rating	UL94 V-0
Insulation Material	Polychlorinated
Lead Free	Contains Lead
Length	17.78mm
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Mount	Through Hole, Surface Mount
Number of Contacts	14
Number of Positions	14
Number of Rows	2
Orientation	Straight
Package Quantity	28
Packaging	Rail/Tube
Pitch	2.54mm
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	7.62mm
Series	123
Termination	Wire Wrap
Voltage Rating	1kV
Voltage Rating (AC)	667mV
DC Rated Voltage	150V
Width	10.16mm
