The FX3U-128MT/ESS is a 64x64 I/O module from Mitsubishi, designed for use in industrial control systems. It operates at a maximum temperature of 50°C and a minimum of 0°C, with a supply voltage of 240V. The module is mounted on a DIN rail and has a depth of 86mm, length of 350mm, and width of 90mm. It features 64 inputs and 64 outputs, with an output current of 800mA.
PackageModule
MountingDIN Rail
Quick Jump:
Technical Specifications
Mitsubishi FX3U-128MT/ESS technical specifications.
General
| Package/Case | Module |
| Depth | 86mm |
| Length | 350mm |
| Manufacturer Series | FX3U Series |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Mount | DIN Rail |
| Number of Inputs | 64 |
| Number of Outputs | 64 |
| Operating Supply Voltage | 240V |
| Output Current | 800mA |
| Width | 90mm |
Compliance
| RoHS | Compliant |
Datasheet
Mitsubishi FX3U-128MT/ESS Datasheet
Download the complete datasheet for Mitsubishi FX3U-128MT/ESS to view detailed technical specifications.
No datasheet is available for this part.

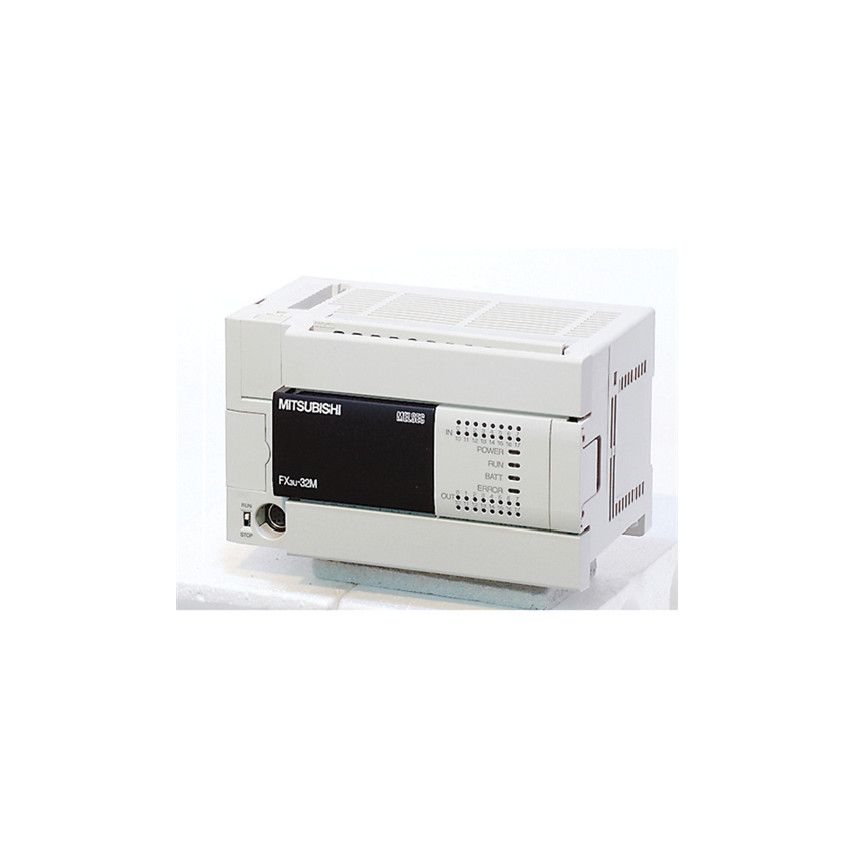

Product Images
