The Mitsubishi FX3U-32MT/ESS is a 16-input 16-output module with a maximum operating temperature of 50°C and a minimum operating temperature of 0°C. It has a package case type of module and is mounted on a DIN rail. The module is part of the FX3U series and has a depth of 86mm, length of 150mm, and width of 90mm. It operates at 240V with an output current of 800mA.
PackageModule
MountingDIN Rail
Quick Jump:
Technical Specifications
Mitsubishi FX3U-32MT/ESS technical specifications.
General
| Package/Case | Module |
| Depth | 86mm |
| Length | 150mm |
| Manufacturer Series | FX3U Series |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Mount | DIN Rail |
| Number of Inputs | 16 |
| Number of Outputs | 16 |
| Operating Supply Voltage | 240V |
| Output Current | 800mA |
| Width | 90mm |
Compliance
| RoHS | Compliant |
Datasheet
Mitsubishi FX3U-32MT/ESS Datasheet
Download the complete datasheet for Mitsubishi FX3U-32MT/ESS to view detailed technical specifications.
No datasheet is available for this part.

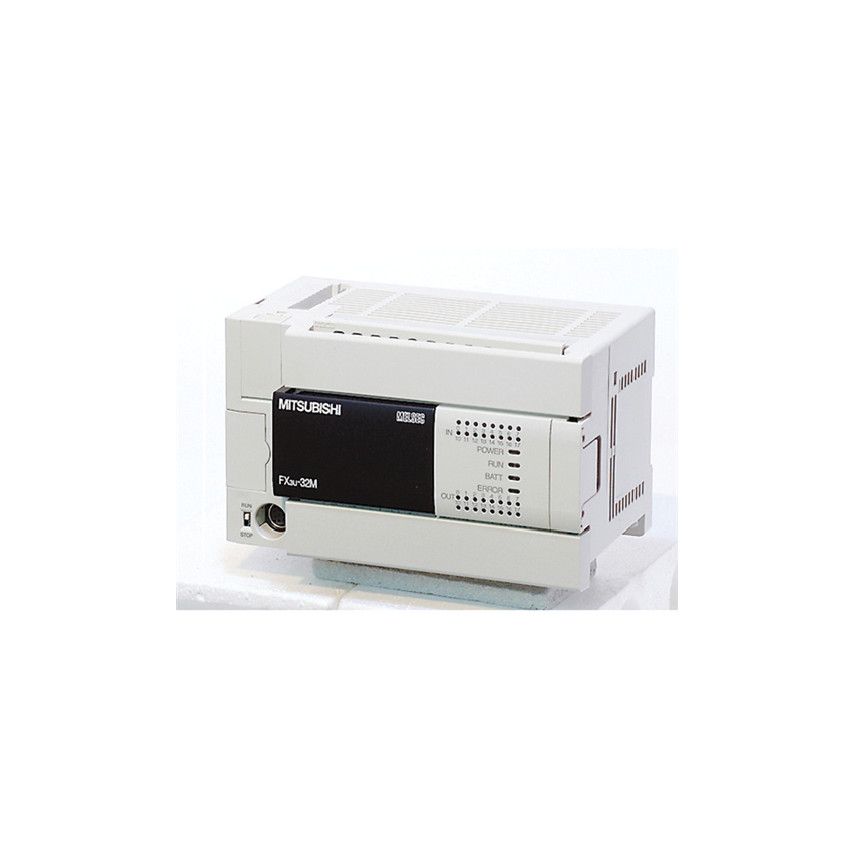

Product Images
