Technical Specifications
Molex 0002081003 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Type | Signal |
| Depth | 4.34mm |
| Height | 4.22mm |
| Length | 19.3mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Cable |
| Orientation | Straight |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MLX 42024 |
| Shielding | Unshielded |
| Termination | Crimp |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Gauge | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 0002081003 Datasheet
Download the complete datasheet for Molex 0002081003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

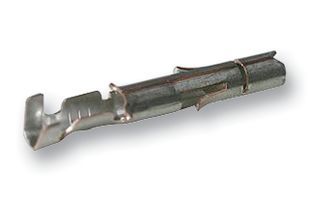

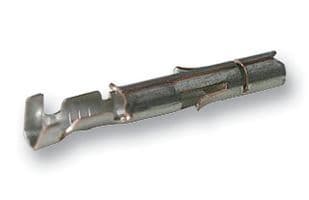

Product Images
