Male crimp terminal, designed for signal applications, features brass construction with tin plating. This straight, unshrouded header component supports a wire gauge range of 14 to 20 AWG, with a maximum current rating of 13.5A and a voltage rating of 600V. Operating within a temperature range of -55°C to 105°C, it is RoHS compliant and mounts via cable. The component is supplied on a tape and reel for efficient assembly.
Voltage Rating600V
Current Rating5A
MountingCable
Quick Jump:
Technical Specifications
Molex 02-08-2003 technical specifications.
General
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Type
Signal
Current Rating
5A
Depth
4.45mm
ELV
Compliant
Gender
Male
Length
20.1mm
Max Current Rating
13.5A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
600V
Mount
Cable
Number of Contacts
1
Orientation
Straight
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
MLX
Shielding
Unshielded
Termination
Crimp
Voltage Rating
600V
Wire Gauge (Max)
14AWG
Wire Gauge (Min)
20AWG
Wire/Cable Gauge
20AWG
Compliance
RoHS
Compliant
Datasheet
Molex 02-08-2003 Datasheet
Download the complete datasheet for Molex 02-08-2003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

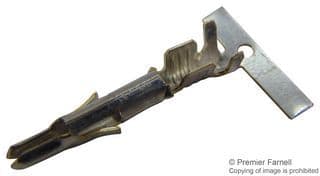

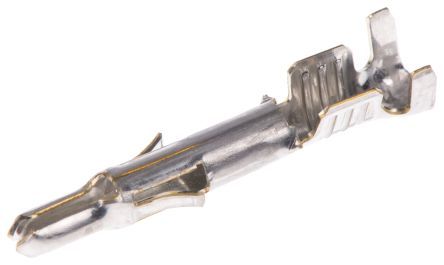

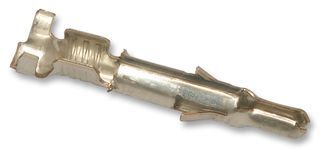

Product Images
