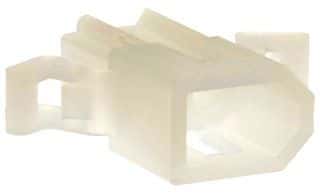

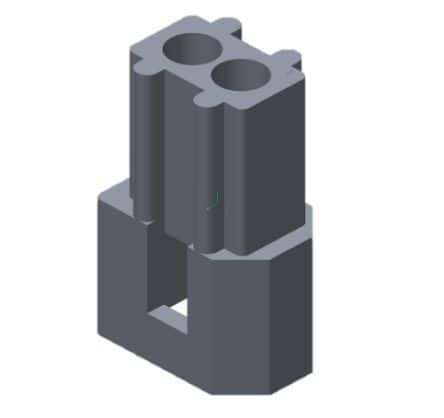

2-position ZIF/LIF connector housing for flexible flat cable (FFC) and flexible printed circuit (FPC) applications. Features a 3.68mm pitch and straight orientation for free-hanging, cable mounting. Rated for 250V operating supply voltage and 5A current, with a maximum operating temperature of 105°C. Constructed with halogen-free and lead-free materials, meeting UL, CSA, and TUV approvals, and is RoHS compliant. The natural colored housing has a 19.84mm depth, 7.61mm height, and 5.1mm width.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 03-06-2023 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 03-06-2023 technical specifications.
| Approvals | UL, CSA, TUV |
| Package/Case | 0306 |
| Color | Natural |
| Contact Gender | Male |
| Contact Type | Male or Female |
| Current Rating | 5A |
| Depth | 19.84mm |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Halogen Free |
| Height | 7.61mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 11.26mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Supply Voltage | 250V |
| Orientation | Straight |
| Package Quantity | 7500 |
| Packaging | Bulk |
| Pitch | 3.68mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 1625 |
| Termination | Crimp |
| Voltage Rating | 250V |
| Width | 5.1mm |
| RoHS | Compliant |
