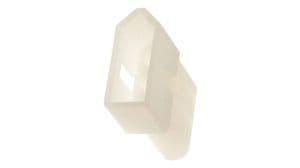

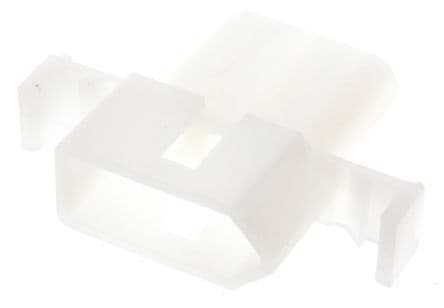

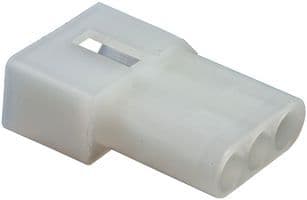

3-position, 1-row rectangular power connector with male contacts and solder termination. Rated for 14A and 250V operating supply voltage, this free-hanging, cable-mount plug features a straight orientation and a 5.03mm pitch. Constructed with a natural housing color and a UL94 V-2 flammability rating, it operates within a temperature range of -40°C to 105°C. This lead-free and RoHS-compliant component is UL and CSA approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 03-09-2032 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA |
| Color | Natural |
| Contact Type | Male or Female |
| Current Rating | 14A |
| Depth | 25.65mm |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Height | 8.6mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Max Current Rating | 14A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Supply Voltage | 250V |
| Orientation | Straight |
| Package Quantity | 4000 |
| Packaging | Bulk |
| Pitch | 5.03mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 1396 |
| Termination | Crimp |
| Weight | 0.060671oz |
| RoHS | Compliant |
