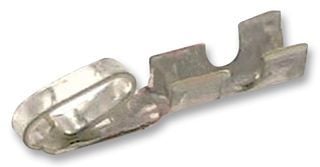

Female signal terminal for crimp termination, featuring brass construction with tin plating. Rated for 3A current and 250V AC/DC, it accommodates wire gauges from 30AWG to 22AWG. Operating temperature range is -40°C to 105°C. This straight, unshielded component is supplied in bulk packaging.
Package100
Voltage Rating250V
Current Rating3A
MountingCable
Quick Jump:
Technical Specifications
Molex 08-50-0114 technical specifications.
General
Package/Case
100
Contact Gender
Female
Contact Material
Brass
Contact Plating
Tin, Brass
Contact Type
Signal
Current Rating
3A
Depth
2.1mm
Gender
Female
Height
3.68mm
Lead Free
Lead Free
Length
9.7mm
Max Current Rating
9A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Cable
Number of Contacts
1
Number of Rows
1
Orientation
Straight
Package Quantity
2000
Packaging
Bulk
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
2759
Shielding
Unshielded
Termination
Crimp
Voltage Rating
250V
DC Rated Voltage
250V
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
Molex 08-50-0114 Datasheet
Download the complete datasheet for Molex 08-50-0114 to view detailed technical specifications.
