Female, straight orientation, signal contact type wire terminal for cable mounting. Features brass contact material with tin and brass plating, rated for a maximum current of 5A and 250V DC. Designed for 22-26AWG wire gauges with a crimp termination. Operates within a temperature range of 0°C to 75°C and is RoHS compliant.
MountingCable
Quick Jump:
Technical Specifications
Molex 08-50-0185 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Tin, Brass |
| Contact Type | Signal |
| Depth | 2.72mm |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 13.7mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | KK® Trifurcon™ 7258 |
| Shielding | Unshielded |
| Termination | Crimp |
| DC Rated Voltage | 250V |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 22AWG |
| Wire/Cable Gauge | 26AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 08-50-0185 Datasheet
Download the complete datasheet for Molex 08-50-0185 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

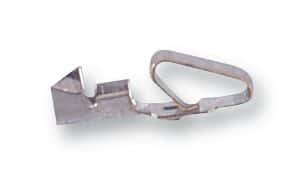

Product Images
