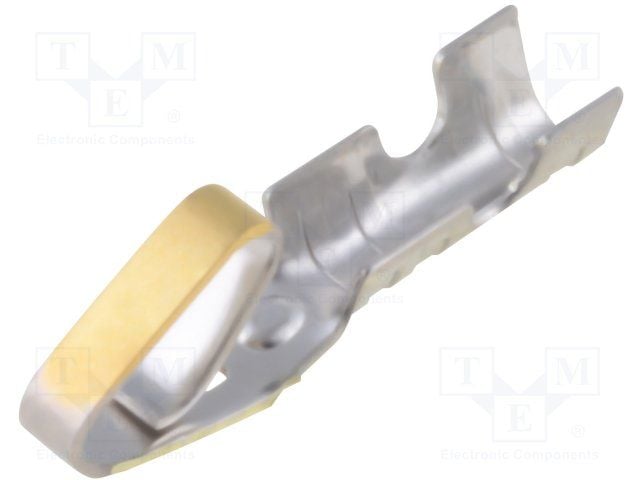

Female signal terminal for wire assembly, featuring a brass contact with gold plating over nickel for enhanced conductivity. This straight, unshielded component supports a current rating of 4A and a voltage rating of 250V DC. Designed for crimp termination, it accommodates wire gauges from 30AWG to 22AWG. Operating within a temperature range of 0°C to 75°C, this lead-free terminal is supplied on tape and reel for efficient production.
Package0101
Voltage Rating250V
Current Rating4A
MountingCable
Quick Jump:
Technical Specifications
Molex 08-55-0101 technical specifications.
General
Package/Case
0101
Contact Gender
Female
Contact Material
Brass
Contact Plating
Gold
Contact Type
Signal
Current Rating
4A
Depth
2.1mm
Gender
Female
Height
3.68mm
Lead Free
Lead Free
Length
9.7mm
Max Current Rating
4A
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Mount
Cable
Number of Contacts
1
Orientation
Straight
Packaging

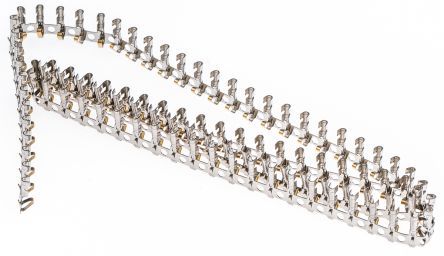

Tape and Reel
Plating
Nickel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
KK® 2759
Shielding
Unshielded
Termination
Crimp
Voltage Rating
250V
DC Rated Voltage
250V
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
Molex 08-55-0101 Datasheet
Download the complete datasheet for Molex 08-55-0101 to view detailed technical specifications.
