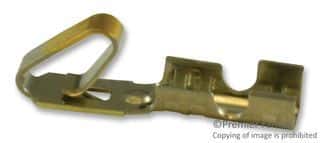

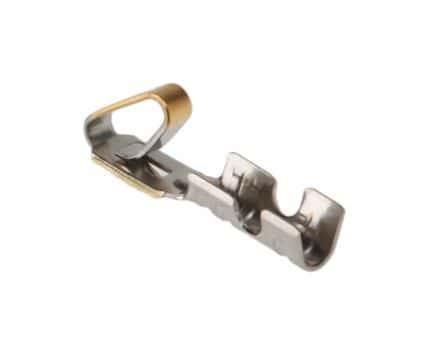

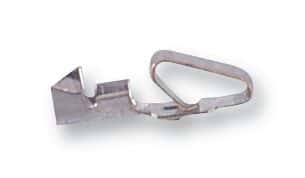

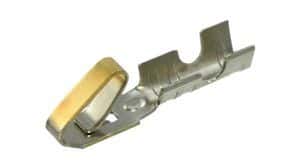

Female signal terminal for crimp termination, featuring brass contact material with gold and brass plating. This straight, unshielded component supports wire gauges from 30AWG to 22AWG, with a maximum current rating of 2.5A and a voltage rating of 250V. Operating within a temperature range of 0°C to 75°C, it is lead-free and RoHS compliant. Packaged in bulk for production, it has a length of 9.7mm, height of 3.68mm, and depth of 2.1mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 08-55-0102 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Molex 08-55-0102 technical specifications.
| Package/Case | 0102 |
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Gold, Brass |
| Contact Type | Signal |
| Current Rating | 4A |
| Depth | 2.1mm |
| Gender | Female |
| Height | 3.68mm |
| Lead Free | Lead Free |
| Length | 9.7mm |
| Max Current Rating | 2.5A |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Mount | Cable |
| Number of Contacts | 1 |
| Orientation | Straight |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Plating | Nickel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | KK® 2759 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 250V |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 30AWG |
| Wire/Cable Gauge | 30AWG |
| RoHS | Compliant |
