Signal receptacle for board-to-board applications, featuring a straight, unshrouded, single-row design. Constructed with brass and bronze contacts, offering tin and gold plating options. Supports wire gauges from 22 AWG to 28 AWG with crimp termination. Rated for a maximum current of 3A and a maximum voltage of 250V AC/DC. Operates within a temperature range of -40°C to 105°C. Lead-free and RoHS compliant.
MountingCable
Quick Jump:
Technical Specifications
Molex 08-70-1039 technical specifications.
General
| Contact Material | Bronze, Brass |
| Contact Plating | Tin, Gold |
| Contact Type | Signal |
| Depth | 2.4mm |
| Gender | Receptacle |
| Height | 2.2mm |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Cable |
| Number of Contacts | 1 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Tape and Reel |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SPOX |
| Shielding | Unshielded |
| Termination | Crimp |
| DC Rated Voltage | 250V |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 22AWG |
| Wire/Cable Gauge | 28AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 08-70-1039 Datasheet
Download the complete datasheet for Molex 08-70-1039 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

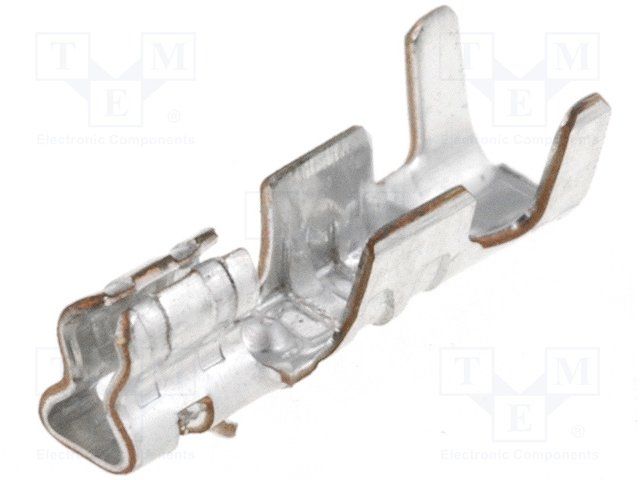

Product Images
