Molex
09-48-2051
Board Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, 0.156 inch Pitch, Solder Terminal, Locking, Natural Insulator, Plug,
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 09-48-2051 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Tin |
| Depth | 11.4mm |
| Gender | Receptacle |
| Housing Color | White |
| Length | 19.71mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Through Hole |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1232 |
| Packaging | Tray |
| Pitch | 3.96mm |
| RoHS Compliant | Yes |
| Series | 41815 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Molex 09-48-2051 Datasheet
Download the complete datasheet for Molex 09-48-2051 to view detailed technical specifications.
No datasheet is available for this part.

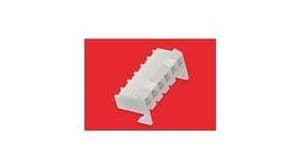

Product Images
