8-position, 1-row male pin header with a 3.96mm pitch. Features brass contacts with tin/copper plating and a 7A current rating. Through-hole mount design with a straight orientation. Housing is natural colored, UL94 V-0 flammability rated, and operates within a -40°C to 105°C temperature range. Rated for 250V AC/DC, this lead-free component is supplied in bulk packaging.
Voltage Rating250V
Current Rating7A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 09-65-2088 technical specifications.
General
| Color | Natural |
| Contact Material | Brass |
| Contact Mating Length | 0.419inch |
| Contact Plating | Tin, Copper |
| Contact Type | Male Pin |
| Current Rating | 7A |
| Depth | 10.75mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 3000 |
| Packaging | Bulk |
| Pitch | 3.96mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SPOX™ 5273 |
| Termination | Solder |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 09-65-2088 Datasheet
Download the complete datasheet for Molex 09-65-2088 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

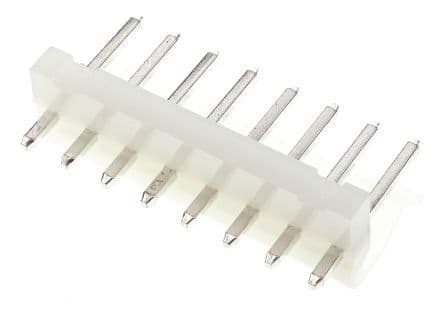

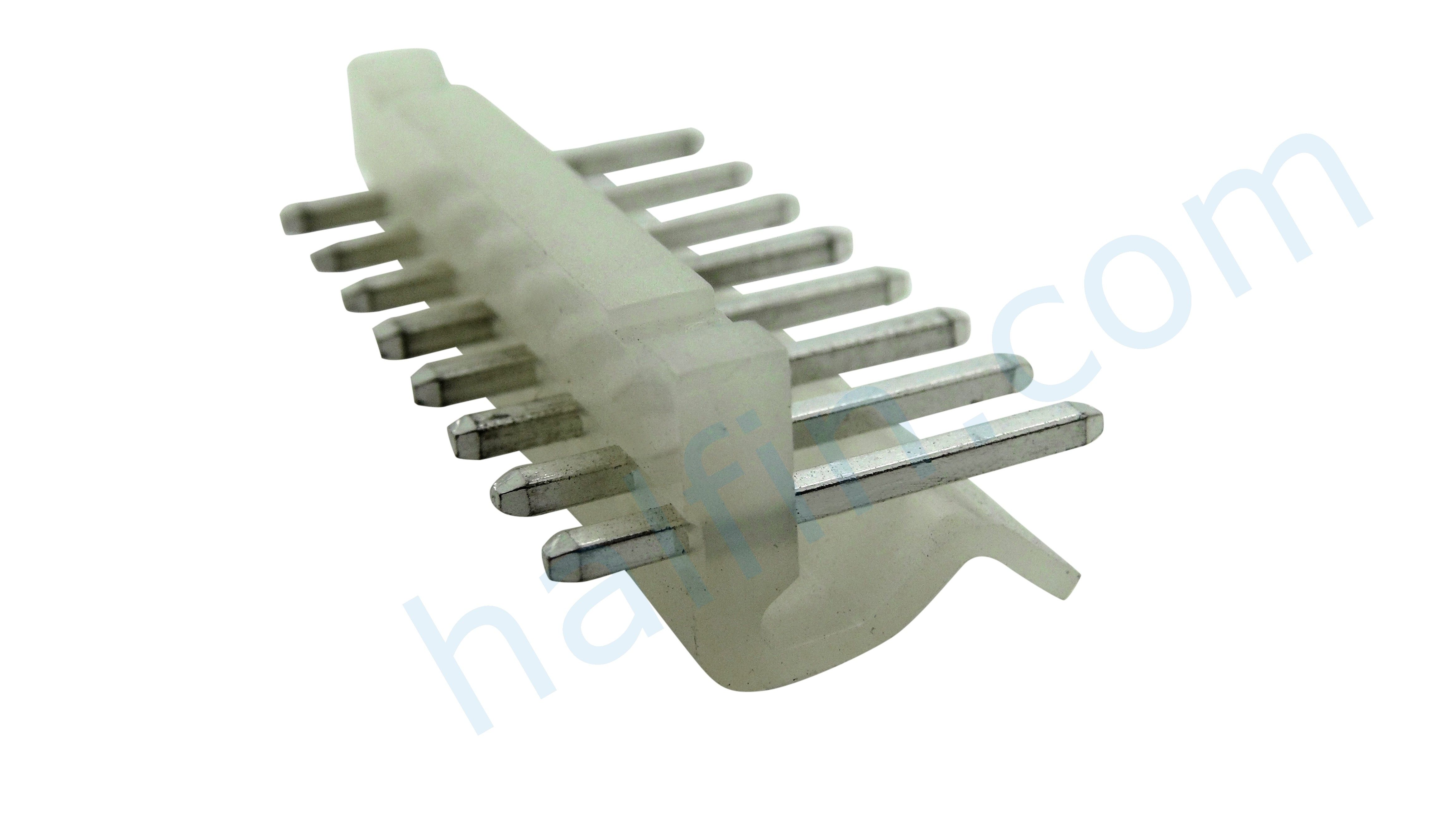

Product Images
