5.08mm pitch wire-to-board header, featuring a vertical, straight orientation with through-hole mounting. This male header offers 5 circuits and 5 positions, constructed with brass contacts plated in tin. It supports a current rating of 7A and a maximum voltage rating of 250V AC/DC. The housing is natural colored, made from UL94 V-2 rated material, and operates within a temperature range of -40°C to 105°C.
Voltage Rating250V
Current Rating7A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 10-32-1051 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 7A |
| Flammability Rating | UL94 V-2 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Height | 12.9mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 24.3mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bulk |
| Pitch | 5.08mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 5281 |
| Termination | Solder |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Width | 10.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 10-32-1051 Datasheet
Download the complete datasheet for Molex 10-32-1051 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

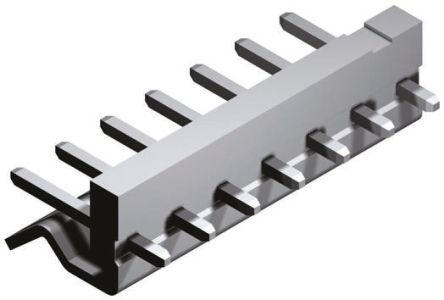

Product Images
