2-position, 1-row right-angle surface mount SSL receptacle connector with 4mm pitch. Features copper alloy contacts with tin plating, rated for 9A and 300V. Designed for 18-24AWG wire, it operates within a -40°C to 130°C temperature range and boasts a UL94 V-0 flammability rating. This low halogen component is RoHS compliant.
Voltage Rating300V
Current Rating9A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 104188-0210 technical specifications.
General
| Color | White |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Tin |
| Current Rating | 9A |
| Depth | 4.2mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Natural |
| Length | 13mm |
| Material | Copper Alloy |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Cut Tape |
| Pitch | 4mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Lite-Trap |
| Termination | Solder |
| Voltage Rating | 300V |
| Width | 7.9mm |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 18AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 104188-0210 Datasheet
Download the complete datasheet for Molex 104188-0210 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

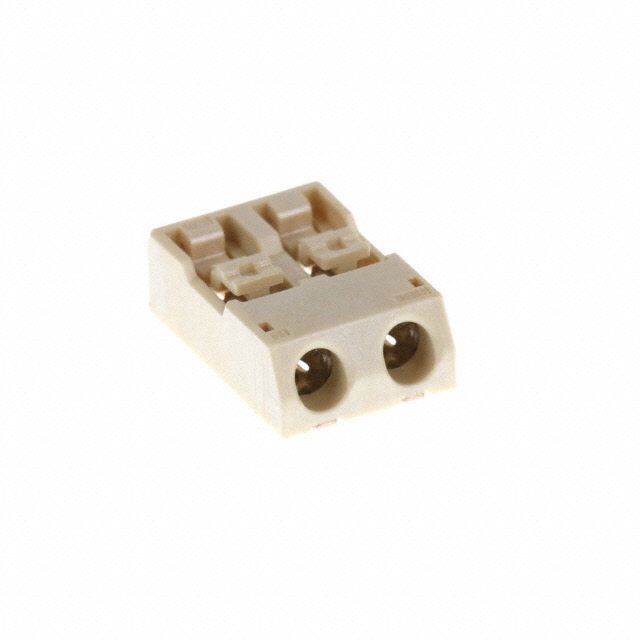

Product Images
